Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double butted alloy cyclocross frame
Suspension Fork
Carbon blades w/alloy steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105 RD-5600 Black
Front Derailleur
Shimano 105 FD-5600 Black
Shift Levers
Shimano 105 ST-5600 Black
Cassette
Shimano 105 CS-5600 12-25T 10spd
Crank
FSA CK-C6020SS Gossamer Cross 46/36T
Bottom Bracket
FSA MegaExo
Chain
Shimano 105 CN-5600
Chain Tensioner
N/A
Pedals
none
Wheels
Front Hub
Mavic Aksium Noir
Rear Hub
Mavic Aksium Noir
Rims
Mavic Aksium Noir
Spokes
Mavic Aksium Noir
Tires
Continental Speed King 700x35c
Brakes
Brakes
Shimano 105 ST-5600 Black
Brake Levers
Shimano 105 ST-5600 Black
Cockpit
Stem
Lightweight 3D forged alloy wet white
Handlebar
Ritchey Pro Logic II
Grips
Cork Wrap - black w/Norco logo
Headset
Ritchey Logic Zero Comp
Seat
Saddle
WTB Silverado Comp White
Seatpost
Lateral Clamping Seatpost Wet White
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 594 mm | 594 mm | 595 mm | 606 mm | 621 mm |
| Top Tube Length | 528 mm | 528 mm | 543 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 145 mm | 170 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1013 mm | 1013 mm | 1015 mm | 1025 mm | 1041 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 749 mm | 764 mm | 789 mm | 812 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

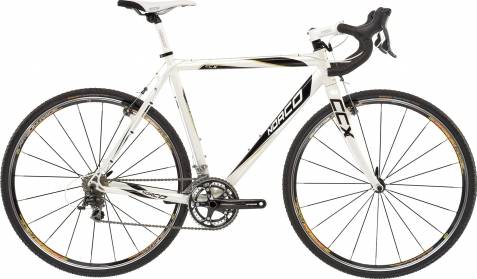

About this model
CCX 1 completes the Norco Ccx model. 17 bikes variations carry this model name so far. Take a sneak peek at all Norco Ccx bikes models from 2010, by clicking here.
Model range prices
Norco CCX 2 2010 is the cheapest bike model and costs 865$. Norco CCX SL 2010 is the most expensive one and costs 2195$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1350$. Doing a quick comparison, we notice that CCX 1 price is 49.04% smaller than the average cost of a Cyclocross bike.
Average weight for Cyclocross bikes
On a deeper look, we notice that the average weight of a Cyclocross bike is 8.79 kg (19.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Norco CCX 1 it’s weighing 9.8 kg (21.61 lbs). At this weight, is considerably heavier than average. In short, the average Cyclocross bike weight is 11.49% lower than this one.
CCX 1 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The CCX 1 2010 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CCX 1 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
CCX 1 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
