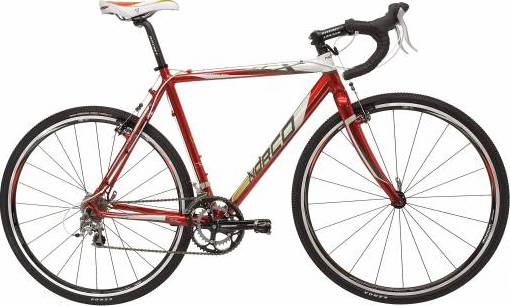

Norco CCX 2 2009
2009 Road
Estimate price |
1,078$
Weight | 10.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 double butted aluminum cyclocross
Suspension Fork
Alloy blades w/Chromo steerer
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD-4500 Tiagra
Front Derailleur
Shimano FD-3400 Sora
Shift Levers
Shimano ST-3400 Sora
Cassette
Shimano CS-HG50 12-25T 9 speed
Crank
FSA CK-C400ST Vero Cross 48/34T
Bottom Bracket
FSA PowerDrive
Chain
Shimano HG-53
Pedals
Shimano PD-M505
Wheels
Front Hub
Shimano WH-R500
Rear Hub
Shimano WH-R500
Rims
Shimano WH-R500
Spokes
Shimano WH-R500
Tires
Kenda Small Block Eight 700 x 32c
Brakes
Brakes
Tektro CR-720 Cross Cantilever
Brake Levers
Shimano ST-3400 Sora
Cockpit
Stem
Ritchey Logic OS
Handlebar
Ritchey Logic
Grips
Black cork tape
Headset
Ritchey Logic Zero Comp
Seat
Saddle
WTB Rocket V Custom
Seatpost
Ritchey
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm | 275 mm | 275 mm |
| Front Center | 594 mm | 594 mm | 595 mm | 606 mm | 621 mm |
| Top Tube Length | 528 mm | 528 mm | 543 mm | 558 mm | 578 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 145 mm | 170 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1013 mm | 1013 mm | 1015 mm | 1025 mm | 1041 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 749 mm | 764 mm | 789 mm | 812 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
CCX 2 is part of the Norco Ccx model. There are 17 bikes that carry this model name. Take a sneak peek at all Norco Ccx bikes models from 2009, by clicking here.
Model range prices
Norco CCX 2 2009 is the most economical model, with a starting price of 1078$. Norco CCX SL 2009 on the other hand costs 2763$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Cyclocross bikes average price
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Norco released this model in 2009, its price was 1078$. Doing a quick comparison, we notice that CCX 2 price is 86.64% smaller than the average cost of a Cyclocross bike.
Cyclocross bikes average weight
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.5 kg (23.15 lbs), Norco bike is much heavier than average. In other words, this model is 19.45% heavier than the average Cyclocross bike.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the CCX 2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco CCX 2 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Norco CCX 2 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
