Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 65mm -
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight aluminum low standover frame
Suspension Fork
Spinner Air 24" 65mm travel air spring w/lockout and luminum steer tube"
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD M310 direct mount
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano CS HG30 8-spd cassette 11-32T
Crank
Aluminum narrow-wide 28T 3-pc crankset - Black
Bottom Bracket
Cartridge bearing square taper BB
Pedals
VP505 aluminum Jr. MTB flat pedall 9/16""
Wheels
Front Hub
KT aluminum disc 32H MTB hub
Rear Hub
KT aluminum disc 32H MTB rear cassette hub
Rims
Aluminum double wall 24" MTB"
Tires
Kenda Small Block 8 24" x 1.95"" MTB tread"
Brakes
Brakes
Shimano BR-M355 hydraulic disc brake w/160mm rotor
Brake Levers
Shimano BR-M355 hydraulic disc brake w/lever reach adjust
Cockpit
Stem
Kalloy 35mm ext., 1-1/8" threadless MTB"
Handlebar
Jr. MTB aluminum 680mm wide x 30mm rise
Grips
Jr. MTB lock on, soft krayton rubber
Seat
Saddle
Norco Jr. MTB saddle with cutaway design
Seatpost
Aluminum with micro adjust top, 250mmx27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | N/A |
|---|---|
| Stack Reach Ratio | 1.6 mm |
| Bottom Bracket Height | 270 mm |
| Front Center | 548 mm |
| Rake | 38 mm |
| Stack | 514 mm |
| Reach | 322 mm |
| Top Tube Length | 492 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 290 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 372 mm |
| Wheelbase | 916 mm |
| Bottom Bracket Drop | 40 mm |
| Standover Height | 507 mm |
| Front Travel | 65 mm |
| Wheels | 24" |
About this model

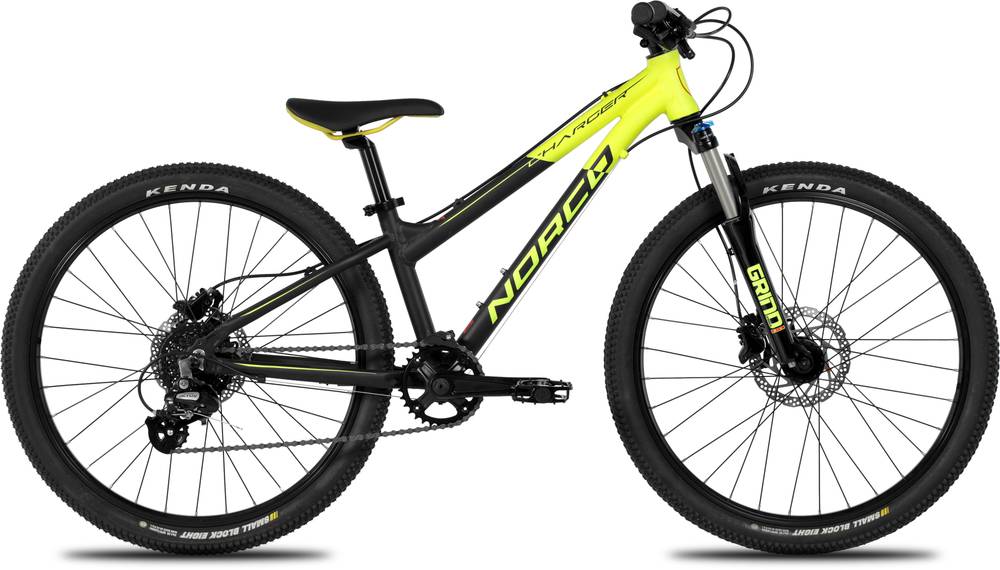

Charger 4.1 completes the Norco Charger model. Norco launched 83 frames of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Charger 2.1 2017 has a starting price of 699$. Norco Charger 4.1 2017 on the other hand is the most expensive at 719$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Mountain frames
If you want an acceptable Mountain frame you should know that the average price is 514$. However, this doesn’t mean that if you spend less money on a Mountain frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 719$. Comparing this to the average Mountain frame price, we see that the price is 39.88% higher.
Overview of components
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Charger 4.1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
