Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Charger Alloy 650B XC W/Formed Tubing
Suspension Fork
Rock Shox 30 Gold Solo Air 100mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX 10spd Shadow
Front Derailleur
Shimano Deore 2spd
Shift Levers
Jagwire
Cassette
SRAM PG1020 11/36
Crank
Shimano Deore 38/24
Bottom Bracket
Shimano GXP
Chain
SRAM PG1031 10spd
Chain Tensioner
N/A
Pedals
Wellgo Alloy Pedals
Wheels
Front Hub
SRAM MTH-406
Rear Hub
SRAM MTH-406
Rims
WTB SX19 27.5
Tires
WTB Nano 27.5"x2.1"
Brakes
Brakes
Shimano M445 Hydraulic 160mm
Brake Levers
Shimano Deore M445
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy
Handlebar
Norco Lite DB 15mm 720mm
Grips
Norco Grip
Headset
FSA No. 10 w/16mm conical spacer
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" | 18.5" | 20" | 21.5" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.61 mm | 1.57 mm | 1.53 mm | 1.5 mm | 1.47 mm |
| Bottom Bracket Height | 297 mm | 297 mm | 297 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 608 mm | 623 mm | 642 mm | 662 mm | 680 mm | 699 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 41 mm | 42 mm |
| Trail | 88 mm | 85 mm | 85 mm | 85 mm | 86 mm | 85 mm |
| Stack | 591 mm | 603 mm | 612 mm | 621 mm | 630 mm | 640 mm |
| Reach | 358 mm | 374 mm | 389 mm | 405 mm | 420 mm | 435 mm |
| Top Tube Length | 528 mm | 550 mm | 571 mm | 592 mm | 613 mm | 634 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1036 mm | 1050 mm | 1069 mm | 1090 mm | 1108 mm | 1127 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 737 mm | 728 mm | 735 mm | 745 mm | 746 mm | 755 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview

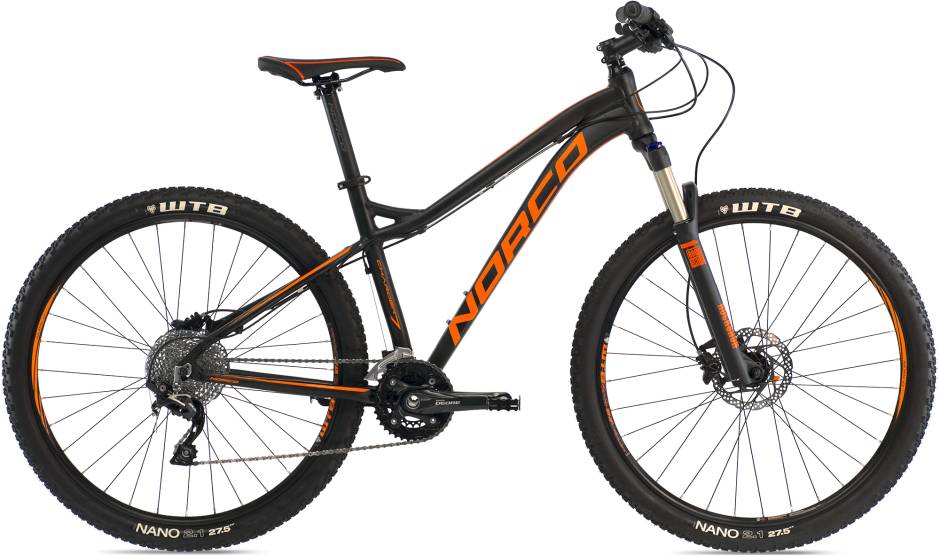

Charger 7.1 completes the Norco Charger model. 83 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Norco Charger 2015 is the cheapest bike model and costs 550$. Norco Charger 7.1 2015 is the most expensive one and costs 1250$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2015 and its price was 1250$. Comparing this to the average Crosscountry bike price, we see that the price is 52.4% lower.
Charger 7.1 components
Fork
The RockShox 30 Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Charger 7.1 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
