Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Acera, FSA -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Charger Alloy XC Frame W/Formed Tubing
Suspension Fork
Suntour XCM 29" 100mm w/Hydraulic lock-out
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera RD-M390 9spd
Front Derailleur
Shimano Acera FD-M390 3spd
Shift Levers
Jagwire
Cassette
Shimano CS-HG20 11/34 9spd
Crank
FSA Dyna Drive 44/32/22T - Black
Bottom Bracket
FSA BB-7420ST Cartridge
Chain
SRAM PG951 9spd
Chain Tensioner
N/A
Pedals
Wellgo Resin Pedals
Wheels
Front Hub
Shimano HB-RM35 CenterLock Disc
Rear Hub
Shimano FH-RM35 CenterLock Disc
Rims
WTB SX19 29" 32H DW
Tires
Geax AKA 2.2
Brakes
Brakes
Shimano BR-M375 Mech Disc 160mm
Brake Levers
Tektro Alloy
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy
Handlebar
Norco Alloy 15mm Riser
Grips
T-One H2O Grips
Headset
FSA No. 10 w/16mm conical spacer
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - | - | - |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.68 mm | 1.59 mm | 1.53 mm | 1.5 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 620 mm | 629 mm | 650 | 670 mm | 684 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Stack | 622 mm | 629 mm | 629 mm | 634 mm | 639 mm |
| Reach | 363 mm | 375 mm | 395 mm | 414 mm | 426 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1054 mm | 1063 mm | 1086 mm | 1106 mm | 1120 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 63 mm | 63 mm | 63 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 24" | 24" | 24" | 24" | 24" |
About this model

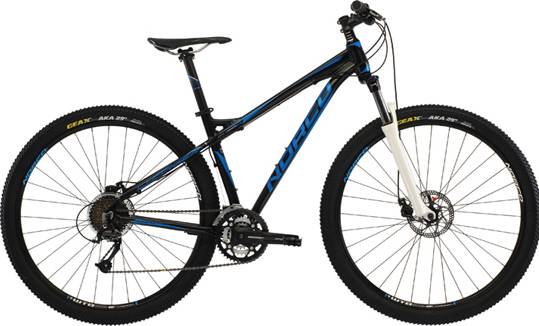

Charger 9.3 is a Norco Charger model. There are 83 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Model range prices
Norco Charger 6.3 2013 is the cheapest bike model and costs 690$. Norco Charger 9.1 2013 is the most expensive one and costs 1045$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Mountain bikes
Our math shows that the average cost of a dependable Mountain bike is 616$. However, even though the average price of a Mountain bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 724$. In conclusion, this bike price is 17.53% more expensive than the price of the average Mountain bike.
Charger 9.3 components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Charger 9.3 bike is equipped with the 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Charger 9.3 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
