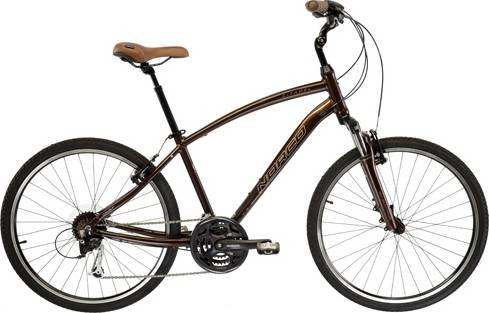

Norco Citadel 2012
2012 Urban
Estimate price |
565$
Weight | 14.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 alloy w/comfort stays & internal cables
Suspension Fork
SR Suntour M-3000-AL suspension fork
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera RD-M430 - Black
Front Derailleur
Shimano Acera FD-M390
Shift Levers
Shimano Acera Easy-Fire 60 27speed - Black
Cassette
Shimano CS-HG30 11-32T 9 speed
Crank
Shimano Altus FC-M311 48/38/28 - Black
Bottom Bracket
Cartridge
Chain
KMC Z99
Pedals
Resin body with resin cage w/Kraton
Wheels
Front Hub
Formula alloy hub - Black
Rear Hub
Formula alloy cassette hub - Black
Rims
Double wall alloy w/CNC side wall 32h - Black
Spokes
Black stainless spokes - 15 gauge - Black
Tires
Comfort 26" x 1.75"""
Brakes
Brakes
Tektro 837AL-EN V-Brakes
Brake Levers
Shimano Altu-s Easy-Fire 60 w/4-finger levers
Cockpit
Stem
Forged alloy adjustable stem
Handlebar
Alloy comfort high riser bar
Grips
Triple density ergonomic w/Norco bar plug
Headset
Semi-Integrated threaded - Black
Seat
Saddle
Norco Classic Comfort saddle
Seatpost
Alloy suspension seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 627 mm | 636 mm | 651 mm | 666 mm |
| Rake | 40 mm | 40 mm | 40 mm | 39 mm |
| Trail | 82 mm | 79 mm | 79 mm | 80 mm |
| Stack | 581 mm | 597 mm | 611 mm | 635 mm |
| Reach | 370 mm | 378 mm | 388 mm | 394 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm | 644 mm |
| Seat Tube Length | 365 mm | 420 mm | 475 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1092 mm | 1101 mm | 1116 mm | 1131 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 743 mm | 770 mm | 800 mm | 836 mm |
| Front Travel | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Citadel belongs to the Norco Citadel model. 22 bikes variations carry this model name so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Citadel price was 565$. In conclusion, this bike price is 0.53% higher than the price of the average Hybrid bike.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Norco Citadel it’s weighing 14.32 kg (31.57 lbs). At this weight, is slightly heavier than average. To sum up, it’s 3.39% heavier than the average weight of Hybrid bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Norco Citadel 2012 bike is equipped with the SunTour fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Norco Citadel 2012, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Citadel has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
