Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 alloy 26" men's frame w/comfort stays & internal cables"
Suspension Fork
SR Suntour NEX-26' 63mm travel fork
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 - Black
Front Derailleur
Shimano Tourney FD-M191
Shift Levers
N/A
Cassette
Shimano CS-HG31 11-32T 8 speed
Crank
Shimano Altus FC-M171C 48/38/28T - Black
Bottom Bracket
Cartridge BB
Chain
KMC Z-72
Chain Tensioner
N/A
Pedals
Wellgo Alloy Comfort Pedal w/ Kraton
Wheels
Front Hub
Formula Alloy hub 32h - Silver
Rear Hub
Formula Alloy hub w/Cassette 32h - Silver
Rims
Double wall alloy w/CNC side wall 32h - Silver
Tires
CST C-1096 26 x 1.95
Brakes
Brakes
Tektro 837AL V-Brakes - Black
Brake Levers
Shimano Easy-Fire 51 w/4 finger lever
Disk Rotors
N/A
Cockpit
Stem
Forged alloy adjustable stem - Silver
Handlebar
Alloy comfort high riser bar - Silver
Grips
Triple density ergonomic w/Norco bar plug
Headset
Semi-Integrated threaded - Black
Seat
Saddle
Norco Classic Comfort saddle
Seatpost
Alloy suspension seatpost - Silver
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.57 mm | 1.61 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm | 283 mm |
| Front Center | 627 mm | 636 mm | 651 mm | 666 mm |
| Rake | 40 mm | 40 mm | 40 mm | 39 mm |
| Trail | 82 mm | 79 mm | 79 mm | 80 mm |
| Stack | 581 mm | 597 mm | 611 mm | 635 mm |
| Reach | 370 mm | 378 mm | 388 mm | 394 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm | 644 mm |
| Seat Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Seat Tube Length | 365 mm | 420 mm | 475 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 195 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1092 mm | 1101 mm | 1116 mm | 1131 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 734 mm | 762 mm | 790 mm | 826 mm |
| Front Travel | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

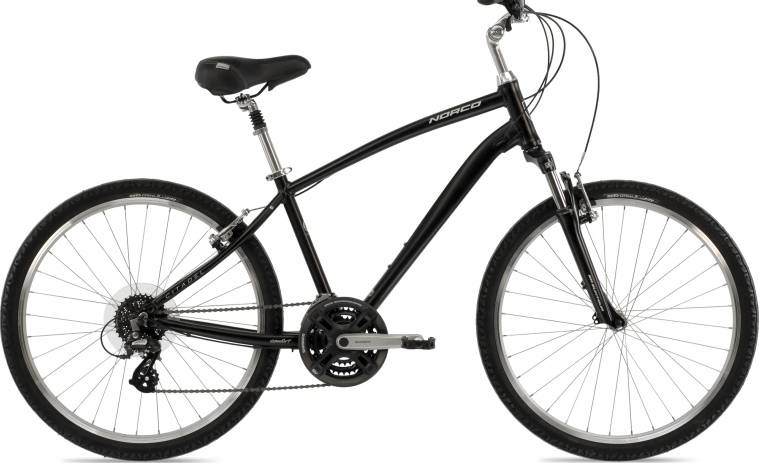

Citadel Mens completes the Norco Citadel model. There are 22 bikes that carry this model name. Take a sneak peek at all Norco Citadel bikes models from 2014, by clicking here.
Model range prices
The most economical model, the Norco Citadel Womens 2014 has a starting price of 575$. Norco Citadel Mens 2014 on the other hand is the most expensive at 575$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 575$. In conclusion, this bike price is 2.31% more expensive than the price of the average Hybrid bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Citadel Mens comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Citadel Mens 2014 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Citadel Mens comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Citadel Mens comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
