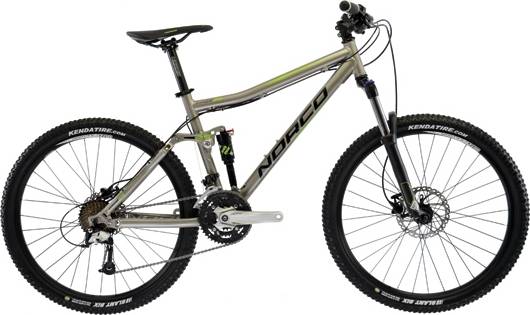

Norco Faze DX 2012
2012 Mountain
Estimate price |
1,525$
Weight | 14.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox
-
Groupset Alivio -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Faze frame ( 120 mm travel) same frame as 2011
Suspension Fork
Rockshox XC 32 120 mm travel
Rear Shock
Rockshox Bar R
Drivetrain
Rear Derailleur
Shimano Alivio RD 9 speed
Front Derailleur
Shimano Alivio FD 9 speed
Shift Levers
Shimano Alivio 3 speed front rapid fire
Cassette
Shimano cassette CS HG 20 9 speed
Crank
Shimano Alivio triple ( 9 speed )
Bottom Bracket
Shimano Octalink
Chain
KMC 9 speed chain
Pedals
Wellgo MTB pedal
Wheels
Front Hub
Alloy front QR hub with disc mount
Rear Hub
Alloy 8/ 9 sped rear cassette with disc mount
Rims
Alex TD 25 double wall alloy MTB rim
Spokes
Black 2.0 PG stainless steel spokes
Tires
Kenda Slant Six 26 x 2.1
Brakes
Brakes
Hayes Dyno Sport hydraulic disc brake
Brake Levers
Hayes Dyno Sport
Cockpit
Stem
Norco 6061 short reach alloy stem
Handlebar
Norco 1" rise 740 mm width "
Grips
Norco dual density MTB grip
Headset
FSA TH -855
Seat
Saddle
Norco MTB saddle
Seatpost
Norco 6061 alloy double bolt seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.42 mm | 1.37 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 630 mm | 650 | 676 mm | 702 mm | 728 mm |
| Rake | 38 mm | 38 mm | 39 mm | 39 mm | 40 mm |
| Trail | 88 mm | 88 mm | 87 mm | 87 mm | 86 mm |
| Stack | 562 mm | 562 mm | 571 mm | 581 mm | 590 mm |
| Reach | 375 mm | 395 mm | 417 mm | 439 mm | 461 mm |
| Top Tube Length | 542 mm | 562 mm | 587 mm | 612 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 395 mm | 440 mm | 485 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1053 mm | 1073 mm | 1099 mm | 1125 mm | 1151 mm |
| Standover Height | 758 mm | 759 mm | 772 mm | 791 mm | 813 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Faze DX is a Norco Faze model. Norco launched 22 bikes of this model so far. Take a sneak peek at all Norco Faze bikes models from 2012, by clicking here.
Model range prices
The most economical model, the Norco Faze DX 2012 has a starting price of 1525$. Norco Faze LX 2012 on the other hand is the most expensive at 1750$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Faze DX price was 1525$. Doing a quick comparison, we notice that Faze DX price is 81.11% smaller than the average cost of a Trail bike.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Norco Faze DX it’s weighing 14.45 kg (31.86 lbs). At this weight, is considerably heavier than average. In conclusion, the average Trail bike weighs 11.33% less than Faze DX.
Faze DX components
Fork
Norco Faze DX 2012 bike is equipped with the RockShox fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Rockshox Bar R, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Faze DX bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Faze DX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
