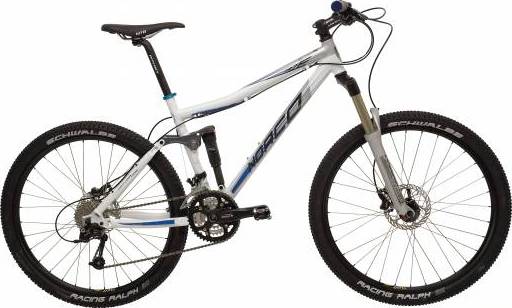

Norco FAZE THREE 2009
2009 Mountain
Estimate price |
2,199$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted M-6, 100-120 mm adjustable travel
Suspension Fork
Rockshox Recon 327, 120 mm, 1-1/8” threadless
Rear Shock
Fox Float R
Drivetrain
Rear Derailleur
Shimano Deore, 9 speed, long cage
Front Derailleur
Shimano Deore 31.8
Shift Levers
Shimano Deore rapid fire, 9 speed front and rear
Cassette
Shimano Deore, HG-50 9 speed, 11-32T
Crank
Shimano Deore 2 pc 44/32/22T
Bottom Bracket
Shimano Deore
Chain
KMC Z-9000 9 speed
Pedals
Shimano PD M505
Wheels
Front Hub
Shimano M-475, 100 mm, 6 bolt disc
Rear Hub
Shimano M-475, 135 x 10 mm, 6 bolt disc mount, 8/9 sp
Rims
Mavic XM-117 black 32 H
Spokes
Stainless steel , blue alloy nipples
Tires
Schwalbe Racing Ralph 26 x 2.10 evolution
Brakes
Brakes
Avid Juicy 3, 6” rotor
Brake Levers
Avid Juicy 3
Cockpit
Stem
Ritchey, 31.8 mm bar clamp, 6 deg, black
Handlebar
Ritchey Comp low rise, 20 mm rise , 31.8
Grips
Pro Palm lock on grip
Headset
FSA TH-855 1-1/8” threadless
Seat
Saddle
WTB Silverado Comp, synthetic leather
Seatpost
Ritchey OE alloy 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 624 mm | 637 mm | 659 mm | 679 mm | 705 mm |
| Top Tube Length | 543 mm | 563 mm | 583 mm | 603 mm | 628 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 393 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1048 mm | 1062 mm | 1083 mm | 1103 mm | 1129 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 738 mm | 738 mm | 753 mm | 775 mm | 796 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
FAZE THREE is part of the Norco Faze model. 22 bikes variations carry this model name so far. Check out the entire range from 2009 of this model, by clicking this link.
Model range prices
The most economical model, the Norco FAZE THREE 2009 has a starting price of 2199$. Norco FAZE ONE 2009 on the other hand is the most expensive at 5575$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2009 and its price was 2199$. In conclusion, this bike price is 25.6% lower than the price of the average Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Norco FAZE THREE it’s weighing 13.2 kg (29.1 lbs). At this weight, is slightly heavier than average. In short, the average Trail bike weight is 1.69% lower than this one.
FAZE THREE components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float R rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The FAZE THREE 2009 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The FAZE THREE has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
