Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 145mm -
Travel Rear 120mm -
Fork Manitou Machete JUNIT
-
Groupset Box Four -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
128cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Frame, 120mm Travel, Tapered Head Tube, ISCG05 Mount
Suspension Fork
Manitou Machete J-Unit Comp 24", 145mm Travel
Rear Shock
X-Fusion 02 Pro R, 170x35mm
Drivetrain
Rear Derailleur
Box Four Wide
Shift Levers
Box Four Multi
Cassette
Box Four, 11-42T, 8 Speed
Crank
Alloy Two Piece, 28T Narrow Wide, 140mm
Bottom Bracket
BSA Threaded
Chain
Box Four 8 Spd Chain
Pedals
VP-225 Jr. Flat
Wheels
Front Hub
Bear Pawls 15x110mm Boost, 32H, 6 Bolt
Rear Hub
Bear Pawls 12x148 Boost, 32H, HG, 6 Bolt
Rims
Stan's Flow K 24", 32H
Tires
Front: Maxxis Minion DHF EXO/TR 2.4", Rear: Maxxis Minion DHF EXO/TR 2.4"
Brakes
Brakes
Front: Tektro HD-J285 Hydraulic, Organic Pads, Rear: Tektro HD-J285 Hydraulic, Organic Pads
Brake Levers
Tektro 2-Finger Jr.
Cockpit
Stem
6061 Alloy, 35mm Length, 31.8mm Clamp
Handlebar
6061 Aluminum, 660mm, 15mm Rise
Grips
Jr. Lock-On
Headset
Sealed Cartridge Bearing, Tapered
Seat
Saddle
Norco Youth
Seatpost
TranzX YSP18B, 31.6mm, 100mm, Kid's Tune
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.51 mm |
| Bottom Bracket Height | 305 mm |
| Front Center | 645 mm |
| Rake | 40 mm |
| Trail | 106 mm |
| Stack | 538 mm |
| Reach | 357 mm |
| Top Tube Length | 499 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 64.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 414 mm |
| Wheelbase | 1059 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 576 mm |
| Wheels | 24" |
| Rider Min Height | 128 cm |
| Rider Max Height | 142 cm |
About this model

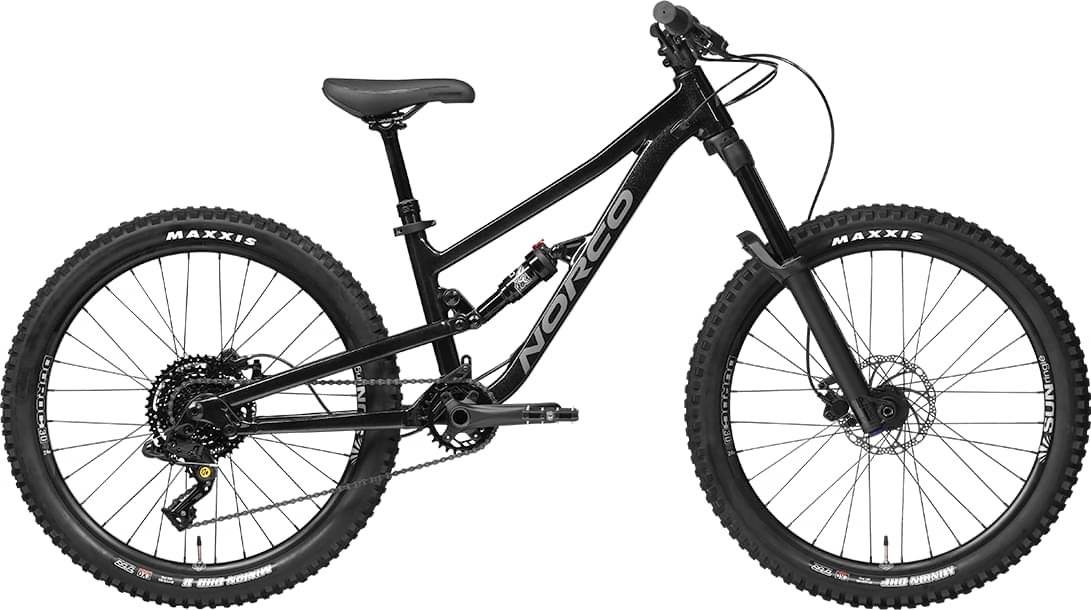

Fluid 2 FS 24 is part of the Norco Fluid Fs model. Norco released 111 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Norco Fluid 2 FS 20 2022 is the most affordable bike of this model and has a price of 1999$. On the other hand, Norco Fluid FS 4.1 2022, is the most expensive and costs 2799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Mountain bikes average price
According to our calculations, the average cost of a Mountain bike that is reliable is 616$. However, you could also get a good Mountain bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Norco Fluid 2 FS 24 price was 2099$. Comparing this to the average Mountain bike price, we see that the price is 240.75% higher.
Fluid 2 FS 24 components
Fork
The fork installed on this bike is the Manitou Machete JUNIT model. The travel on this model is 145mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Fluid 2 FS 24 has a rear shock with a travel of 120mm. The model X-Fusion 02 Pro R is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Fluid 2 FS 24 2022 bike is equipped with 24″ aluminum wheels when leaving the factory. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid 2 FS 24 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
Dropper post
Norco Fluid 2 FS 24 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
