Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Float 32
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid 29er frame with 120 mm travel
Suspension Fork
Fox 32 Float Evolution 29 CTD 120mm x15mm
Rear Shock
Fox Float CTD Evolution series
Drivetrain
Rear Derailleur
Shimano XT M-786 Shadow Plus 10 speed
Front Derailleur
Shimano Deore M616-D seatutbe direct mount
Shift Levers
Jagwire LEX housing
Cassette
SRAM PG 1020 11-36T 10sp
Crank
Shimano Deore M615 38/24T 2x10 w/bb
Bottom Bracket
Comes with crank
Chain
KMC X-10
Chain Tensioner
N/A
Pedals
Wellgo alloy body / alloy cage MTB pedal
Wheels
Front Hub
Formula DC 51 alloy disc w/15 mm
Rear Hub
Formula DC 22 rear disc, QR
Rims
WTB Speed Disc I-19 dbl wall single eyelet
Tires
Continental X-King 29x2.2 folding bead
Brakes
Brakes
Shimano Deore M-506 hydraulic disc 160mm rotor
Brake Levers
Shimano Deore M-506
Disk Rotors
N/A
Cockpit
Stem
Alloy MTB stem with 4 bolt front clamp
Handlebar
Norco 6061 DB alloy 1" ise bar"
Grips
Norco lock on grip
Headset
FSA #57B tapered internal
Seat
Saddle
SDG Bel Air 2.0 XC trail saddle
Seatpost
Norco 6061 alloy forged head 30.9x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.625 mm | 1.543 mm | 1.466 mm | 1.397 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 638 mm | 663 mm | 694 mm | 725 mm |
| Rake | 51 mm | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 91 mm | 91 mm | 91 mm |
| Stack | 603 mm | 614 mm | 623 mm | 633 mm |
| Reach | 371 mm | 398 mm | 425 mm | 453 mm |
| Top Tube Length | 550 mm | 580 mm | 610 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 445 mm | 490 mm | 535 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1085 mm | 1110 mm | 1141 mm | 1172 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 780 mm | 795 mm | 793 mm | 779 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

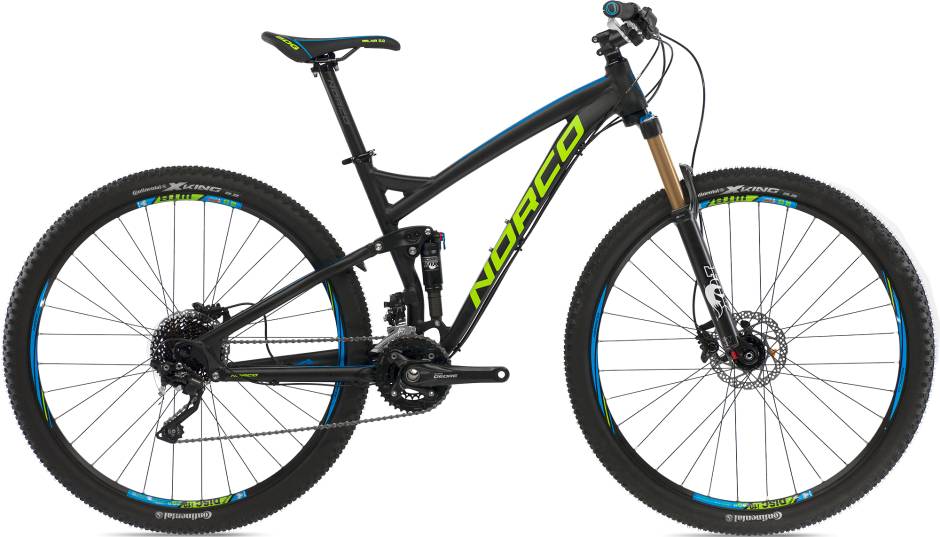

Model Overview
Fluid 9.1 completes the Norco Fluid model. 60 bikes variations carry this model name so far. You can easily view all of the Norco Fluid bikes models from 2015, here.
Model range prices
The most economical model, the Norco Fluid 4.3 2015 has a starting price of 1485$. Norco Fluid 9.1 2015 on the other hand is the most expensive at 2375$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Fluid 9.1 price was 2375$. Comparing this to the average Trail bike price, we see that the price is 16.29% lower.
Overview of components
Fork
The Fluid 9.1 comes factory-installed with the Fox Float 32 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float CTD Evolution series model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Fluid 9.1 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid 9.1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Norco Fluid 9.1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
