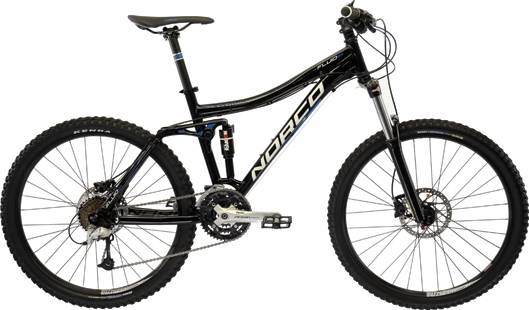

Norco Fluid DX 2012
2012 Mountain
Estimate price |
1,485$
Weight | 15.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour RAIDON
-
Groupset Deore, Acera -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid frame 140 mm travel, M6 tubing, hydroform DT
Suspension Fork
SR Suntour Raidon X2 RL 26" air 140mm w/remote lockout"
Rear Shock
SR Suntour Raidon RS12 LO with lock out lever
Drivetrain
Rear Derailleur
Shimano Deore 9 speed
Front Derailleur
Shimano Acera X
Shift Levers
Shimano Acera X rapid fire
Cassette
Shimano CS HG 20 9 speed
Crank
Shimano Acera Octalink 9 speed
Bottom Bracket
Shimano Octalink
Chain
KMC 9 speed
Pedals
Norco alloy flat pedal thing design alloy pins
Wheels
Front Hub
Alloy front QR hub
Rear Hub
Loose ball 8/ 9 sped rear cassette
Rims
Alex TD 25 double wall alloy MTB rim
Spokes
Black 2.0 stainless steel spokes
Tires
Kenda Nevagal 26 x 2.35 front / 26 x 2.10 rear
Brakes
Brakes
Shimano M-445 hydraulic disc w/ 180 rotor
Brake Levers
Shimano M-445
Cockpit
Stem
Norco short reach forged MTB stem
Handlebar
Norco 25.4 mm wide 740 mm rise bar
Grips
Norco Lock on grips
Headset
FSA TH -855 threadless MTB
Seat
Saddle
Norco design trail saddle
Seatpost
Norco 6061 alloy double bolt 2D forged head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.36 mm | 1.36 mm | 1.35 mm | 1.33 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 659 mm | 695 mm | 695 mm | 716 mm | 738 mm |
| Rake | 56 mm | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 78 mm | 84 mm | 84 mm | 82 mm | 84 mm |
| Stack | 564 mm | 576 mm | 576 mm | 589 mm | 603 mm |
| Reach | 385 mm | 422 mm | 422 mm | 437 mm | 453 mm |
| Top Tube Length | 555 mm | 596 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 432 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1100 mm | 1136 mm | 1136 mm | 1157 mm | 1178 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 755 mm | 757 mm | 757 mm | 786 mm | 806 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview
Fluid DX is a Norco Fluid model. There are 60 bikes that carry this model name. Check out the entire range from 2012 of this model, by clicking this link.
Model range prices
Norco Fluid DX 2012 is the most economical model, with a starting price of 1485$. Norco Fluid LX 2012 on the other hand costs 2085$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Norco Fluid DX price was 1485$. Comparing the average cost of a Trail bike to this one, you will see that Fluid DX price is 85.99% lower.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Norco Fluid DX it’s weighing 15.3 kg (33.73 lbs). At this weight, is much heavier than average. In short, the average Trail bike weight is 17.87% lower than this one.
Fluid DX components
Fork
Norco Fluid DX 2012 bike is equipped with the SunTour RAIDON fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is SR Suntour Raidon RS12 LO with lock out lever, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Fluid DX model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fluid DX comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
