Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061, 120mm Travel
Suspension Fork
RockShox Pike Select, 130mm Travel
Rear Shock
Rockshox Deluxe Select, 120mm Travel
Drivetrain
Rear Derailleur
Shimano XT, RD-M8100
Shift Levers
Shimano SLX, 12 speed
Cassette
Shimano SLX, 10-51T
Crank
Shimano FC-M610 30T
Bottom Bracket
Shimano SM-BB52
Chain
Shimano CNM7100
Pedals
VP Flat Nylon
Wheels
Front Hub
Shimano HB-MT400, 15x110mm Boost
Rear Hub
Shimano FH-MT510-B, Micro Spline
Rims
Stans Flow D, 32H
Tires
Maxxis Minion DHF 2.6" 3C/EXO/TR
Brakes
Brakes
Shimano BR-M420, Hydraulic, 180mm
Cockpit
Stem
6061 Alloy, 50mm, 35mm bore
Handlebar
TranzX 6061 DB, 780mm
Grips
VP lock on
Headset
Sealed Cartridge Bearing
Seat
Saddle
Fizik Taiga
Seatpost
X-Fusion Manic dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 671 mm | 705 mm | 739 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 572 mm | 581 mm | 591 mm |
| Reach | 384 mm | 414 mm | 444 mm |
| Top Tube Length | 526 mm | 558 mm | 590 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1105 mm | 1139 mm | 1173 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 644 mm | 658 mm | 668 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview

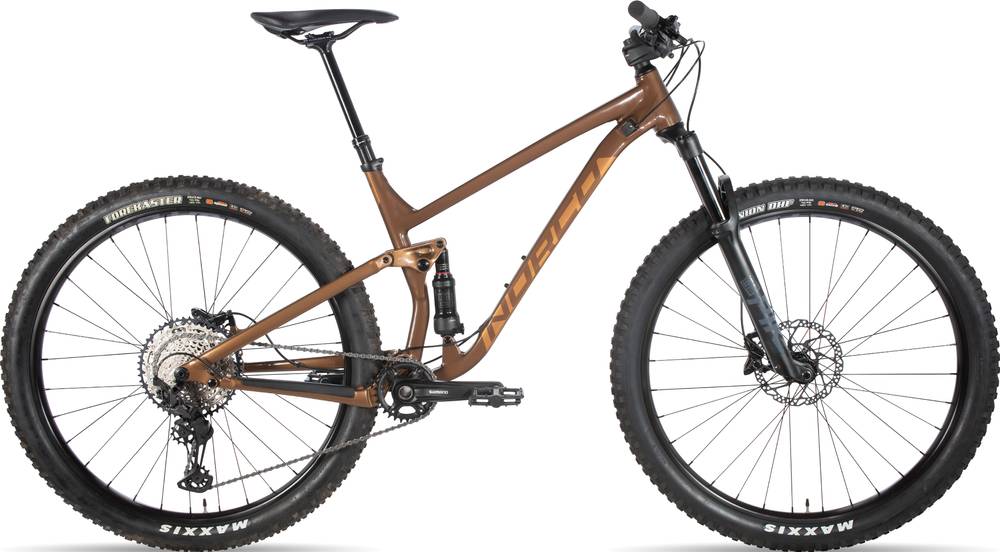

Fluid FS 1 27.5 belongs to the Norco Fluid Fs model. 111 bikes variations carry this model name so far. Take a sneak peek at all Norco Fluid Fs bikes models from 2020, by clicking here.
Model range prices
Norco Fluid FS 2 20 2020 is the cheapest bike model and costs 1599$. Norco Fluid FS 1 27.5 2020 is the most expensive one and costs 2799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 2799$. Doing a quick comparison, we notice that Fluid FS 1 27.5 price is 1.34% higher than the average cost of a Trail bike.
Fluid FS 1 27.5 components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Norco Fluid FS 1 27.5 bike has the Rockshox Deluxe Select model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Fluid FS 1 27.5 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fluid FS 1 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Norco Fluid FS 1 27.5 bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Norco Fluid FS 1 27.5 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
