Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork SunTour XCR 34
-
Groupset Deore, Suntour SR -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Fluid FS, Aluminum, 120mm Travel, Boost 12x148mm TA Dropouts
Suspension Fork
SR Suntour XCR34 AIR, 130mm Travel, Boost 15x110mm TA, LOR/DS
Rear Shock
X-Fusion O2 Pro R, 190x45mm (29") | 190x42.5mm (27.5")
Drivetrain
Rear Derailleur
Shimano Deore M6000, SGS/Shadow Plus, 10 Speed
Front Derailleur
-
Shift Levers
Rear: Shimano Deore SL-M6000, 10 Speed, Front: -
Cassette
Shimano Deore CS-HG500, 11-42T, 10 Speed
Crank
SR Suntour Zeron Boost, 170mm (XS/S) | 175mm (M/L/XL), 30T
Bottom Bracket
SR Suntour BB24, Threaded BSA 73mm
Chain
KMC X10, 10 Speed
Chain Guide
None
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
Novatec Boost 110mm x 15mm
Rear Hub
Joytech D342TSE, Boost 12x148mm
Rims
WTB STP i29 TCS, 32 Hole, 29mm Internal Width
Spokes
Stainless steel 14g, black
Tires
Goodyear Escape, 2.6”
Brakes
Brakes
Tektro HD-M275, 2 Piston Hydraulic Disc, 180mm Rotor
Brake Levers
Tektro HD-M275
Cockpit
Stem
TranzX 6061 Alloy 50mm/35mm
Handlebar
TranzX 6061 DB Alloy 780mm
Grips
VP, Lock-On
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco XC Saddle
Seatpost
TranzX YSP18JL Stealth Dropper, 100mm (XS) | 120mm (S/M/L/XL) Travel, 31.6mm, 1x Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 671 mm | 705 mm | 739 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 112 mm | 112 mm | 113 mm |
| Stack | 572 mm | 581 mm | 591 mm |
| Reach | 384 mm | 414 mm | 444 mm |
| Top Tube Length | 526 mm | 558 mm | 590 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1105 mm | 1139 mm | 1173 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 754 mm | 754 mm | 764 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

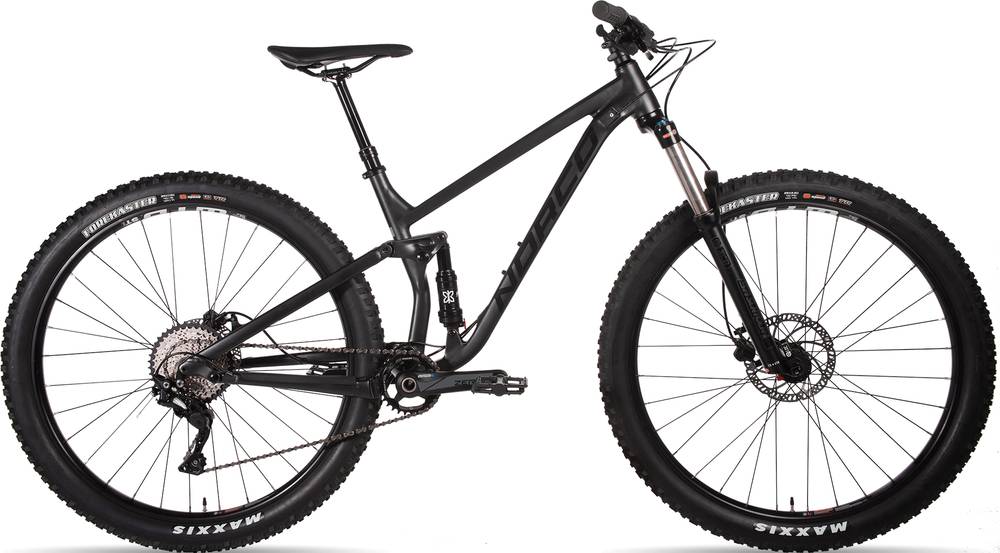

About this model
Fluid FS 4 27.5 completes the Norco Fluid Fs model. Norco released 111 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Fluid FS 4 Women’s 29 2019 has a starting price of 1649$. Norco Fluid FS 1 27.5 2019 on the other hand is the most expensive at 3049$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 1799$. Comparing the average cost of a Trail bike to this one, you will see that Fluid FS 4 27.5 price is 53.53% lower.
Fluid FS 4 27.5 components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Fluid FS 4 27.5 has a rear shock with a travel of 120mm. The model X-Fusion O2 Pro R is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Fluid FS 4 27.5 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Norco model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
