Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
SM
163cm - 174cm
MD
171cm - 182cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid aluminum w/120mm travel
Suspension Fork
Rockshox Recon RL Silver Solo 120mm 15x110mm boost
Rear Shock
Rockshox Monarch RL HVI
Drivetrain
Rear Derailleur
Shimano SLX M7000 Shadow Plus 11spd
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000 11spd I-Spec
Cassette
Sunrace CSMS8 11sp 11/46 Cassette
Crank
Samox Boost crank w/30T aluminum 1X narrow/wide ring
Bottom Bracket
Samox external cartridge BB
Chain
KMX X11-1 11spd
Chain Guide
N/A
Pedals
VP aluminum MTB/BMX flat pedal
Wheels
Front Hub
Joytech Boost 110mm x 15mm
Rear Hub
Joytech disc hub 135mm w/QR 32H
Rims
WTB I29 32H, 29mm inner, TRS tubeless
Spokes
Stainless steel black
Tires
Maxxis Forecaster 2.35 folding, dual compound EXO/TR
Brakes
Brakes
Shimano Alivio M-365 hydraulic disc w/180mm rotor
Brake Levers
Shimano Alivio
Cockpit
Stem
Alloy MTB stem with 4 bolt front clamp
Handlebar
Norco 25mm rise 6061 DB alloy 740/760mm
Grips
Norco Gator grip
Headset
FSA #57B tapered internal
Seat
Saddle
WTB Volt
Seatpost
JD TransX dropper post w/remote lever, 80mm SM, 100mm Med, 125mm L/XL, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.66 mm | 1.4 mm | 1.55 mm | 13.535 mm | 1.47 mm | 1.4 mm |
| Bottom Bracket Height | 332 mm | 334 mm | 332 mm | 334 mm | 332 mm | 334 mm | 334 mm |
| Front Center | 655 mm | 639 mm | 678 mm | 663 mm | 700 | 694 mm | 725 mm |
| Rake | 42 mm | 51 mm | 41 mm | 47 mm | -1887 mm | 46 mm | 46 mm |
| Trail | 95 mm | 86 mm | 96 mm | 90 mm | 2168 mm | 91 mm | 91 mm |
| Stack | 567 mm | 609 mm | 574 mm | 611 mm | mm | 620 mm | 630 mm |
| Reach | 389 mm | 366 mm | 409 mm | 395 mm | 429 mm | 422 mm | 450 mm |
| Top Tube Length | 547 mm | 547 mm | 569 mm | 577 mm | 591 mm | 607 mm | 637 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° | 74.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 405 mm | 445 mm | 435 mm | 490 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 69.5 ° | 68.5 ° | 69.5 ° | 68.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 100 mm | 107 mm | 100 mm | 115 mm | 110 mm | 120 mm |
| Chainstay Length | 422 mm | 447 mm | 422 mm | 447 mm | 422 mm | 447 mm | 447 mm |
| Wheelbase | 1076 mm | 1083 mm | 1098 mm | 1108 mm | 1122 mm | 1138 mm | 1169 mm |
| Bottom Bracket Drop | 18 mm | 39 mm | 18 mm | 39 mm | 18 mm | 39 mm | 39 mm |
| Standover Height | 746 mm | 777 mm | 732 mm | 792 mm | 764 mm | 790 mm | 776 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 163 cm | 171 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 195 cm |
About this model

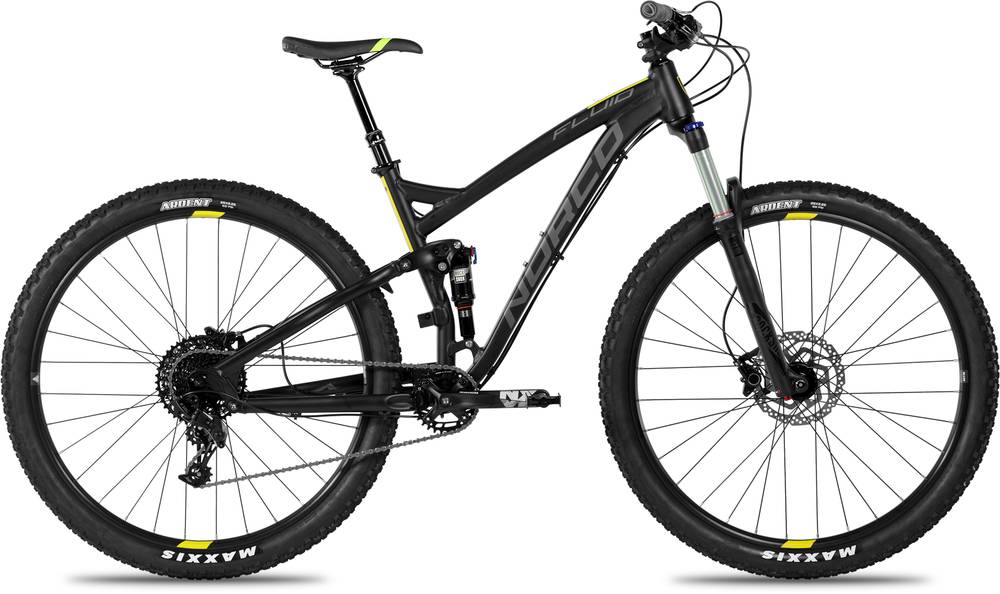

Fluid FS1 is a Norco Fluid Fs model. Norco released 111 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Norco Fluid FS 2.2 2018 is the cheapest bike model and costs 1599$. Norco Fluid FS1+ Womens 2018 is the most expensive one and costs 2199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2099$. Comparing this to the average Trail bike price, we see that the price is 31.59% lower.
Overview of components
Fork
The Fluid FS1 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Fluid FS1 has a rear shock with a travel of 120mm. The model Rockshox Monarch RL HVI is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Norco Fluid FS1 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Norco Fluid FS1 bike has 7 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
