Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Fluid HT, Aluminum, 9x141mm QR Dropouts
Suspension Fork
RockShox Sektor RL, 120mm Travel, Boost 15x110mm TA
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Front Derailleur
-
Shift Levers
Rear: SRAM NX Eagle, 12 Speed, Front: -
Cassette
SRAM NX Eagle PG-1230, 11-50T, 12 Speed
Crank
SRAM NX Eagle, 170mm (XS/S) | 175mm (M/L/XL), 30T
Bottom Bracket
SRAM DUB BB, Threaded BSA 73mm
Chain
SRAM NX Eagle, 12 Speed
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
Novatec Boost 110mm x 15mm
Rear Hub
Joytech D142TSE, 9x141mm QR
Rims
Alex MD-35, 32 Hole, 35mm Internal Width
Tires
WTB Ranger, 27.5x2.8”
Brakes
Brakes
Shimano Altus BR-M201 180mm Disc Brake
Brake Levers
Shimano Altus BR-M201
Cockpit
Stem
Alloy 60mm x 31.8
Handlebar
X6 Alloy 750mm x 31.8
Grips
VP, Lock-On
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco XC Saddle
Seatpost
TranzX YSP18JL Stealth Dropper, 120mm (XS/S) | 130mm (M/L/XL) Travel, 31.6mm, 1x Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 716 mm | 742 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 431 mm | 453 mm | 475 mm |
| Top Tube Length | 621 mm | 651 mm | 681 mm |
| Seat Tube Angle | 72.7 ° | 72.3 ° | 71.9 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1148 mm | 1174 mm | 1200 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 779 mm | 790 mm | 801 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

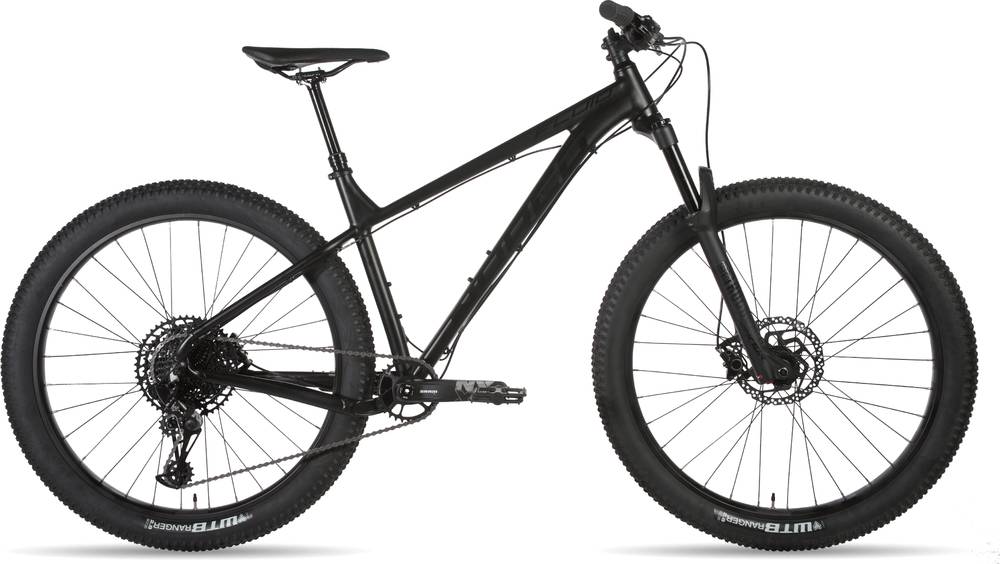

About this model
Fluid HT 1 27.5 is a Norco Fluid Ht model. 78 bikes variations carry this model name so far. Take a sneak peek at all Norco Fluid Ht bikes models from 2019, by clicking here.
Model range prices
Norco Fluid HT 4 Women 26 2019 is the most affordable bike of this model and has a price of 799$. On the other hand, Norco Fluid HT 1 27.5 2019, is the most expensive and costs 1699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Norco Fluid HT 1 27.5 price was 1699$. Comparing the average cost of a Trail bike to this one, you will see that Fluid HT 1 27.5 price is 62.57% smaller.
Overview of components
Fork
The Fluid HT 1 27.5 comes factory-installed with the RockShox Sektor fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Fluid HT 1 27.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid HT 1 27.5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Fluid HT 1 27.5 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
