Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork X-Fusion RC32
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Butted TT, DT, Internal Routing, 27.5" and 29" Options
Suspension Fork
X-Fusion RC32 Air, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100
Shift Levers
Shimano Deore SL-M6100-R
Cassette
Shimano Deore CS-M6100-12, 10-51T, 12 Speed
Crank
Shimano Deore FC-MT510-1, 32T, 170mm (XS, S), 175mm (M, L, XL)
Bottom Bracket
Shimano Sealed Bearing, BSA Threaded
Chain
Shimano Deore CN-M6100
Pedals
VP Nylon Flat
Wheels
Front Hub
Shimano HB-MT400-B, 15x110mm Boost, Center Lock
Rear Hub
Shimano FH-MT410-B, 12x148mm Boost, Micro Spline, Center Lock
Rims
Alex DP30 TRS
Tires
Maxxis Ardent 2.4" EXO 60TPI
Brakes
Brakes
Front: Tektro HD-M275 Hydraulic, Resin Pads, Rear: Tektro HD-M275 Hydraulic, Resin Pads
Brake Levers
Tektro HD-M275
Cockpit
Stem
Alloy 50mm Length, 31.8mm Clamp
Handlebar
X6 Alloy 750mm, 15mm Rise
Grips
VP Lock-On
Headset
Sealed Bearing, Tapered
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 742 mm | 776 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm |
| Stack | 622 mm | 631 mm | 640 mm |
| Reach | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 615 mm | 647 mm | 680 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1169 mm | 1203 mm | 1237 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Standover Height | 664 mm | 680 mm | 704 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 175 cm | 184 cm | 191 cm |
About this model

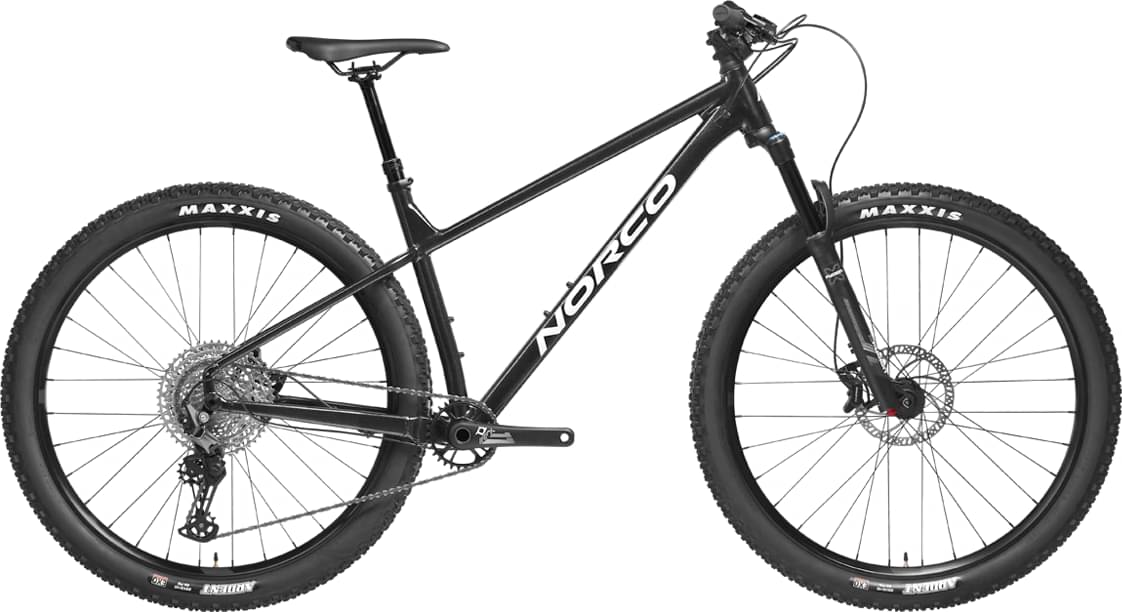

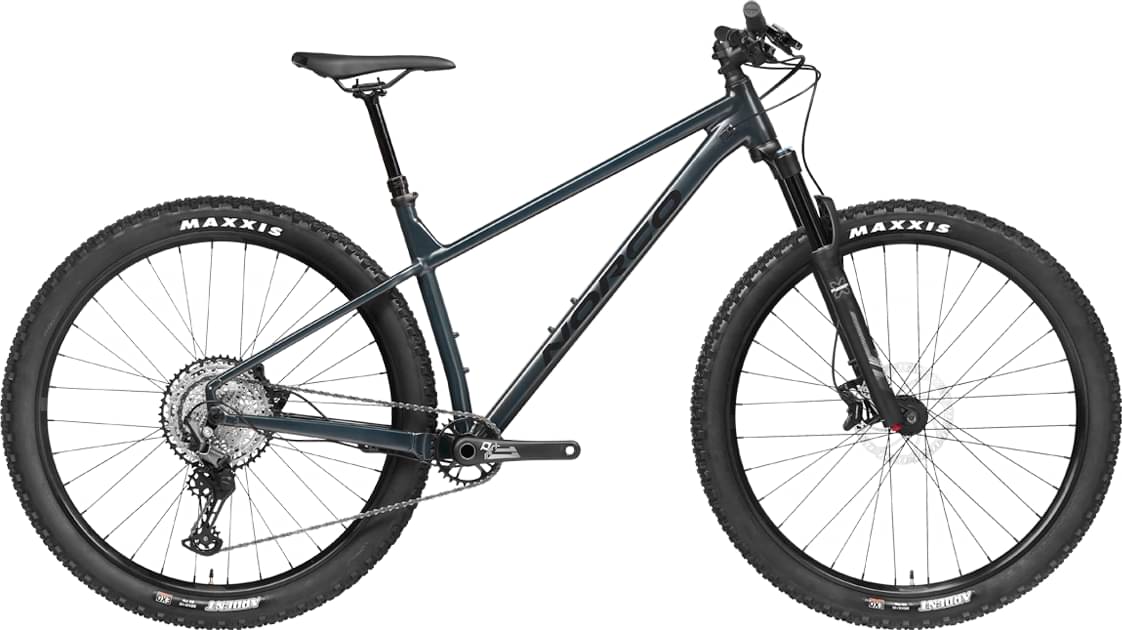

Fluid HT 1 29 is a Norco Fluid Ht model. Norco released 78 bikes variations of this model so far. You can easily view all of the Norco Fluid Ht bikes models from 2023, here.
Model range prices
Norco Fluid HT 20.1+ 2023 is the cheapest bike model and costs 599$. Norco Fluid HT 1 29 2023 is the most expensive one and costs 1599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1599$. Doing a quick comparison, we notice that Fluid HT 1 29 price is 72.73% smaller than the average cost of a Trail bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Fluid HT 1 29 components
Fork
The Fluid HT 1 29 comes factory-installed with the X-Fusion RC32 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Norco Fluid HT 1 29 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid HT 1 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 163 cm – 191 cm (5.35 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
