Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
146cm - 157cm
SM
154cm - 166cm
MD
163cm - 174cm
MD
172cm - 181cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Butted TT, DT, Internal Routing, 27.5" and 29" Options
Suspension Fork
SR Suntour XCM32 LOR DS, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100
Cassette
Shimano Deore CS-M5100, 11-51T, 11 Speed
Crank
Shimano Deore FC-M5100-1, 30T, 170mm (XS, S,), 175mm (M, L, XL)
Bottom Bracket
Shimano Sealed Bearing BSA Threaded
Chain
KMC X11
Pedals
VP Nylon Flat
Wheels
Front Hub
Alloy 15x110mm Boost, 6 Bolt
Rear Hub
Alloy 12x148mm, HG, 6 Bolt
Rims
Alex DP30 TRS
Tires
Maxxis Ardent 2.4" EXO 60TPI
Brakes
Brakes
Tektro HD-M275 Hydraulic, Resin Pads
Brake Levers
Tektro HD-M275
Disk Rotors
Tektro 180mm
Cockpit
Stem
Alloy 50mm Length, 31.8mm Clamp
Handlebar
X6 Alloy 750mm, 15mm Rise
Grips
VP Lock-On
Headset
Sealed Bearing, Tapered
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 670 mm | 704 mm | 738 mm | 742 mm | 776 mm | 810 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 114 mm | 114 mm | 114 mm | 109 mm | 109 mm | 109 mm |
| Stack | 589 mm | 598 mm | 607 mm | 623 mm | 632 mm | 641 mm |
| Reach | 384 mm | 414 mm | 444 mm | 444 mm | 474 mm | 504 mm |
| Top Tube Length | 546 mm | 579 mm | 611 mm | 616 mm | 648 mm | 681 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1101 mm | 1135 mm | 1169 mm | 1170 mm | 1204 mm | 1238 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 602 mm | 621 mm | 651 mm | 665 mm | 681 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 146 cm | 154 cm | 163 cm | 172 cm | 172 cm | 181 cm |
| Rider Max Height | 157 cm | 166 cm | 174 cm | 181 cm | 184 cm | 191 cm |
About this model

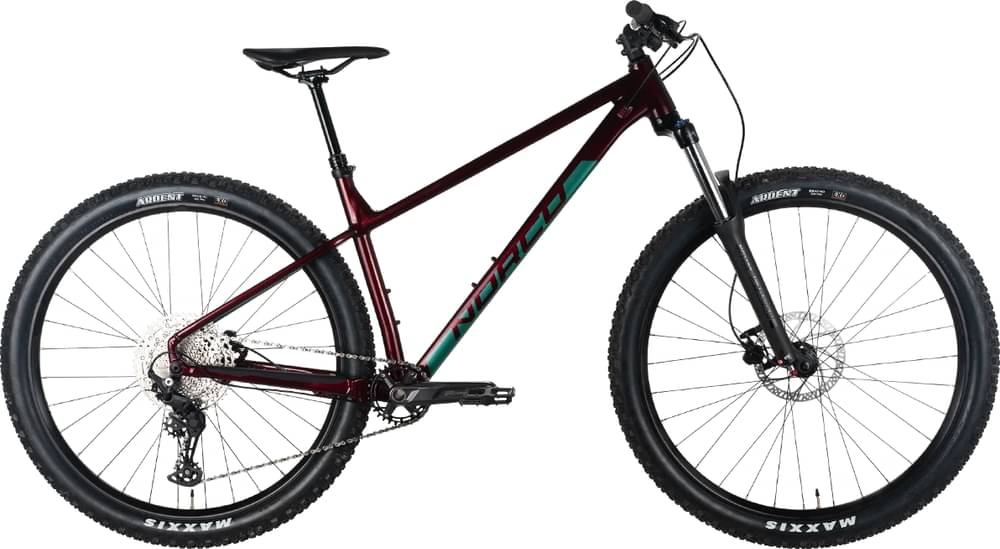

Fluid HT 2 29 is a Norco Fluid Ht model. 78 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Norco Fluid HT+ 2.3 2021 is the most economical model, with a starting price of 829$. Norco Fluid HT 1 27.5 2021 on the other hand costs 1699$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 1399$. Doing a quick comparison, we notice that Fluid HT 2 29 price is 97.43% lower than the average cost of a Trail bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fluid HT 2 29 components
Fork
The Fluid HT 2 29 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Fluid HT 2 29 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid HT 2 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Fluid HT 2 29 comes in 6 sizes, that range from 146 cm – 191 cm (4.79 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Norco model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
