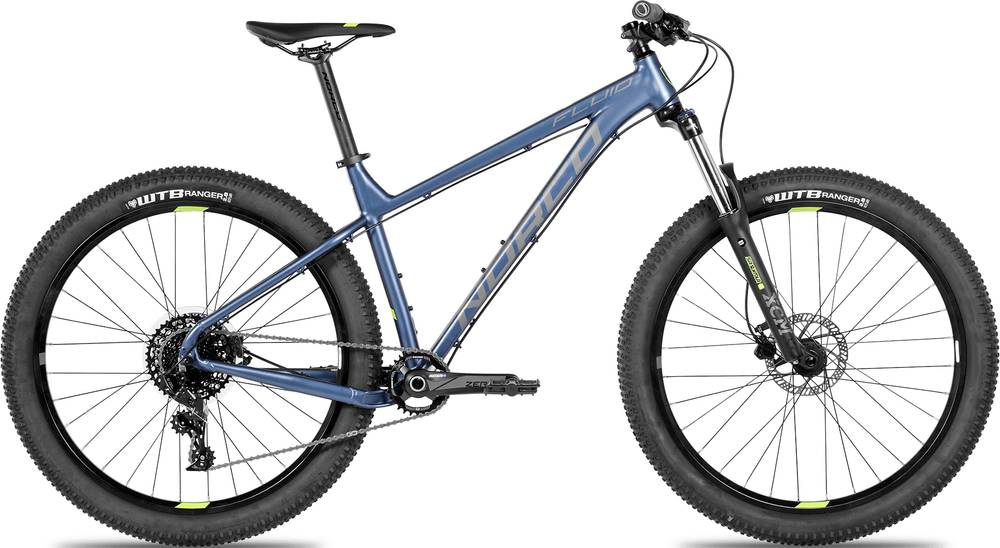

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset NX, Suntour SR -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid 6061 Alloy XC Frame w/DB TT & DT
Suspension Fork
SR Suntour XCM 32 DS 120mm/15mm
Drivetrain
Rear Derailleur
SRAM NX 11spd
Shift Levers
SRAM NX 11spd
Cassette
SRAM PG-1130 11/42 Cassette
Crank
SR Suntour Zeron Boost 30T
Bottom Bracket
SR Suntour BB24
Chain
SRAM PC-1110 11spd
Pedals
VP Nylon Flat Pedal
Wheels
Front Hub
Novatec Boost 110mm x 15mm
Rear Hub
Joytech Boost RR QR 32H
Rims
Alloy XD26 30mm 650B Plus 32H
Tires
WTB Ranger 27.5"x 2.8"
Brakes
Brakes
Tektro HD-M285 Hydraulic 160mm
Brake Levers
Tektro HD-M285
Cockpit
Stem
Alloy 60mm x 31.8
Handlebar
X6 Alloy 750mm x 31.8
Grips
Norco Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm |
| Front Center | 716 mm | 742 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm |
| Stack | 617 mm | 626 mm | 636 mm |
| Reach | 431 mm | 453 mm | 475 mm |
| Top Tube Length | 621 mm | 651 mm | 681 mm |
| Seat Tube Angle | 72.7 ° | 72.3 ° | 71.9 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1148 mm | 1174 mm | 1200 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 779 mm | 790 mm | 801 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Fluid HT 3 27.5 is part of the Norco Fluid Ht model. Norco launched 78 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Fluid HT 3 Womens 27.5 2018 is the most economical model, with a starting price of 899$. Norco Fluid 1 HT Womens 2018 on the other hand costs 1749$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2018, its price was 899$. Doing a quick comparison, we notice that Fluid HT 3 27.5 price is 207.23% smaller than the average cost of a Trail bike.
Fluid HT 3 27.5 components
Fork
The Fluid HT 3 27.5 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Fluid HT 3 27.5 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fluid HT 3 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Norco Fluid HT 3 27.5 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
