Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Suntour SR -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Frame, butted TT & DT
Suspension Fork
SR-Suntour XCM32, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, 10 speed
Shift Levers
Shimano Deore SL-M6000, 10 speed
Cassette
Shimano Deore HG500, 10spd, 11-42T
Crank
SR-Suntour Zeron, 30T
Bottom Bracket
SR Suntour BB24
Chain
KMC X10 10 speed
Pedals
VP Flat nylon
Wheels
Front Hub
Alloy 15x110mm Boost
Rear Hub
Alloy 12x148mm Boost, 32H
Rims
Alex DP30 TRS 29"/27.5"
Tires
Schwalbe Smart Sam 2.6"
Brakes
Brakes
Tektro HD-M275, Hydraulic 180mm
Cockpit
Stem
Norco Alloy, 50mm, 31.8mm bore
Handlebar
X6 Alloy, 750mm, 31.8 bore
Grips
VP lock on
Headset
Sealed Cartridge Bearing
Seat
Saddle
Norco XC
Seatpost
Norco Alloy 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.44 mm | 1.37 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 670 mm | 704 mm | 738 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 589 mm | 598 mm | 607 mm |
| Reach | 384 mm | 414 mm | 444 mm |
| Top Tube Length | 546 mm | 579 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1101 mm | 1135 mm | 1169 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 602 mm | 621 mm | 651 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

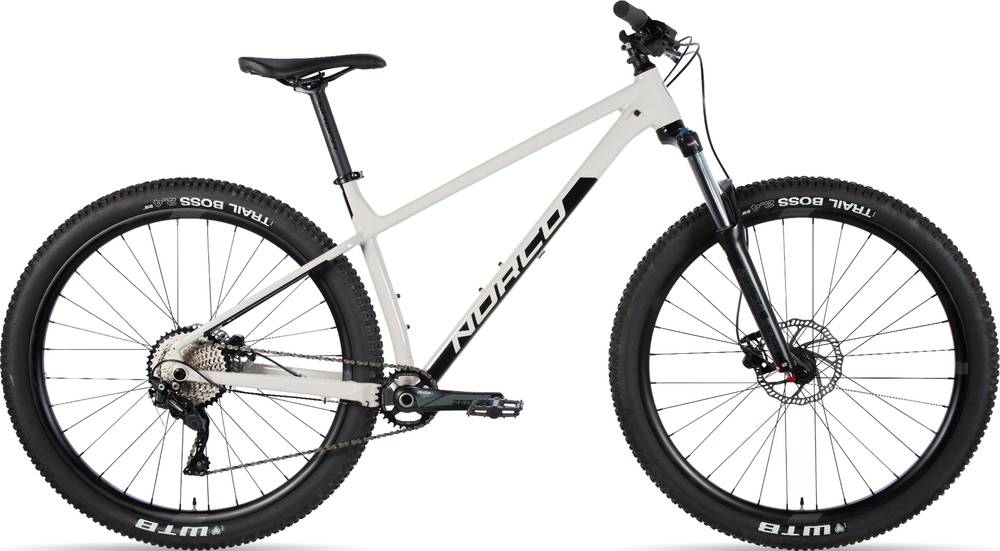

Model Overview
Fluid HT 3 27.5 is a Norco Fluid Ht model. Norco launched 78 bikes of this model so far. You can easily view all of the Norco Fluid Ht bikes models from 2020, here.
Model range prices
Norco Fluid HT+ 2.3 2020 is the cheapest bike model and costs 699$. Norco Fluid HT 1 29 2020 is the most expensive one and costs 1699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 999$. If we compare this with the average Trail bike cost we notice that the price is 176.48% lower.
Fluid HT 3 27.5 components
Fork
Norco Fluid HT 3 27.5 2020 bike is equipped with the SunTour XCM fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Fluid HT 3 27.5 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fluid HT 3 27.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Fluid HT 3 27.5 comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
