Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Suntour SR -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Frame, butted TT & DT
Suspension Fork
SR-Suntour XCM32, 120mm Travel
Drivetrain
Rear Derailleur
Shimano Deore M6000, 10 speed
Shift Levers
Shimano Deore SL-M6000, 10 speed
Cassette
Shimano Deore HG500, 10spd, 11-42T
Crank
SR-Suntour Zeron, 30T
Bottom Bracket
SR Suntour BB24
Chain
KMC X10 10 speed
Pedals
VP Flat nylon
Wheels
Front Hub
Alloy 15x110mm Boost
Rear Hub
Alloy 12x148mm Boost, 32H
Rims
Alex DP30 TRS 29"/27.5"
Tires
Schwalbe Smart Sam 2.6"
Brakes
Brakes
Tektro HD-M275, Hydraulic 180mm
Cockpit
Stem
Norco Alloy, 50mm, 31.8mm bore
Handlebar
X6 Alloy, 750mm, 31.8 bore
Grips
VP lock on
Headset
Sealed Cartridge Bearing
Seat
Saddle
Norco XC
Seatpost
Norco Alloy 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 742 mm | 776 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 109 mm | 109 mm | 109 mm |
| Stack | 622 mm | 631 mm | 640 mm |
| Reach | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 615 mm | 647 mm | 680 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1169 mm | 1203 mm | 1237 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm |
| Standover Height | 664 mm | 680 mm | 704 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

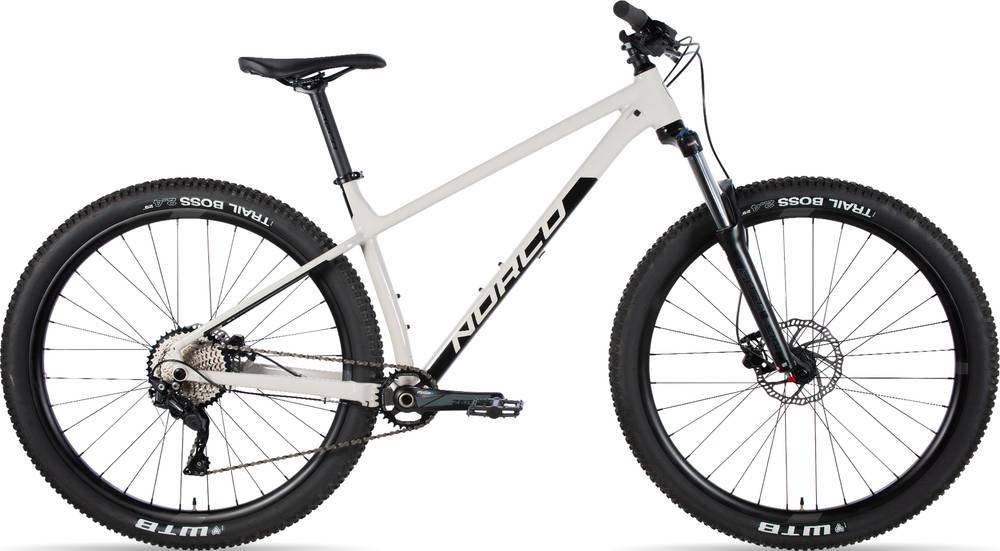

Fluid HT 3 29 belongs to the Norco Fluid Ht model. Norco released 78 bikes variations of this model so far. You can easily view all of the Norco Fluid Ht bikes models from 2020, here.
Model range prices
Norco Fluid HT+ 2.3 2020 is the cheapest bike model and costs 699$. Norco Fluid HT 1 29 2020 is the most expensive one and costs 1699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Norco released this model in 2020, its price was 999$. Comparing this to the average Trail bike price, we see that the price is 176.48% lower.
Fluid HT 3 29 components
Fork
The Fluid HT 3 29 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Norco Fluid HT 3 29 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid HT 3 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
