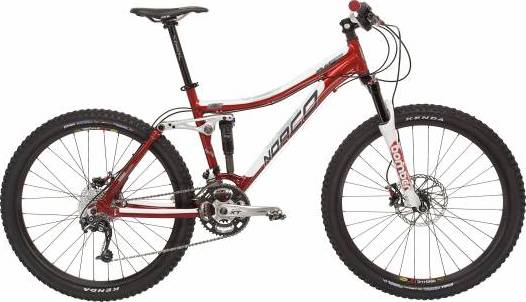

Norco FLUID ONE 2009
2009 Mountain
Estimate price |
3,725$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Marzocchi
-
Groupset XTR -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydraform butted alloy frame with M6 curved top tube, 114-140mm of travel, new forged link arms and chainstay clevis
Suspension Fork
Marzocchi 44 ATA, 100-140mm of travel, 15 mm dropouts, alloy 1-1/8” steer tube
Rear Shock
Fox Float RP-23
Drivetrain
Rear Derailleur
Shimano XTR, 9 speed, long cage
Front Derailleur
Shimano XT 31.8
Shift Levers
Shimano XT rapid fire, 9 speed front and rear
Cassette
Shimano XT 9 speed, 11-34T
Crank
Shimano XT, 44/32/22T Hollowtech 2
Bottom Bracket
Shimano XT
Chain
Shimano HG-93, 9 speed
Pedals
Shimano XT PD M-770
Wheels
Front Hub
Shimano XT 15mm axle
Rear Hub
Shimano XT 135 x 10mm, 9 spd,
Rims
Mavic XM-317, 32 hole
Spokes
Black stainless 1.8 with red alloy nipples
Tires
Kenda Nevegal 26 x 2.10, Kevlar bead, Stick E rubber
Brakes
Brakes
Avid Elixer R, 6” rotor
Brake Levers
Avid Elixer R
Cockpit
Stem
Thomson X4 , black alloy 0 deg rise 31.8 mm bar clamp
Handlebar
Rictchy WCS Carbon rise bar, 19 mm rise, 685 mm width
Grips
Pro Palm lock on grip
Headset
Crank Bros Direct Set 1-1/8”
Seat
Saddle
WTB Devo Team Ni-Cro with tubular Nicro rails, synthetic leather cover
Seatpost
Thomson SP-E113 alloy 410 mm 27.2 black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 651 mm | 665 mm | 686 mm | 707 mm | 729 mm |
| Top Tube Length | 555 mm | 575 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 406 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1091 mm | 1106 mm | 1127 mm | 1148 mm | 1169 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 764 mm | 771 mm | 766 mm | 790 mm | 809 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
FLUID ONE is a Norco Fluid model. Norco launched 60 bikes of this model so far. You can get a glimpse at all models from 2009, by clicking on this link.
Model range prices
Norco FLUID FOUR 2009 is the cheapest bike model and costs 1699$. Norco FLUID LT 1 2009 is the most expensive one and costs 6225$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Norco released this model in 2009, its price was 3725$. In conclusion, this bike price is 34.87% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.7 kg (28 lbs), Norco bike is slightly lighter than average. In conclusion, the average Trail bike weighs 2.2% more than FLUID ONE.
Overview of components
Fork
The fork installed on this bike is the Marzocchi model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The FLUID ONE has a rear shock with a travel of 140mm. The model Fox Float RP-23 is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the FLUID ONE bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco FLUID ONE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
FLUID ONE comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
