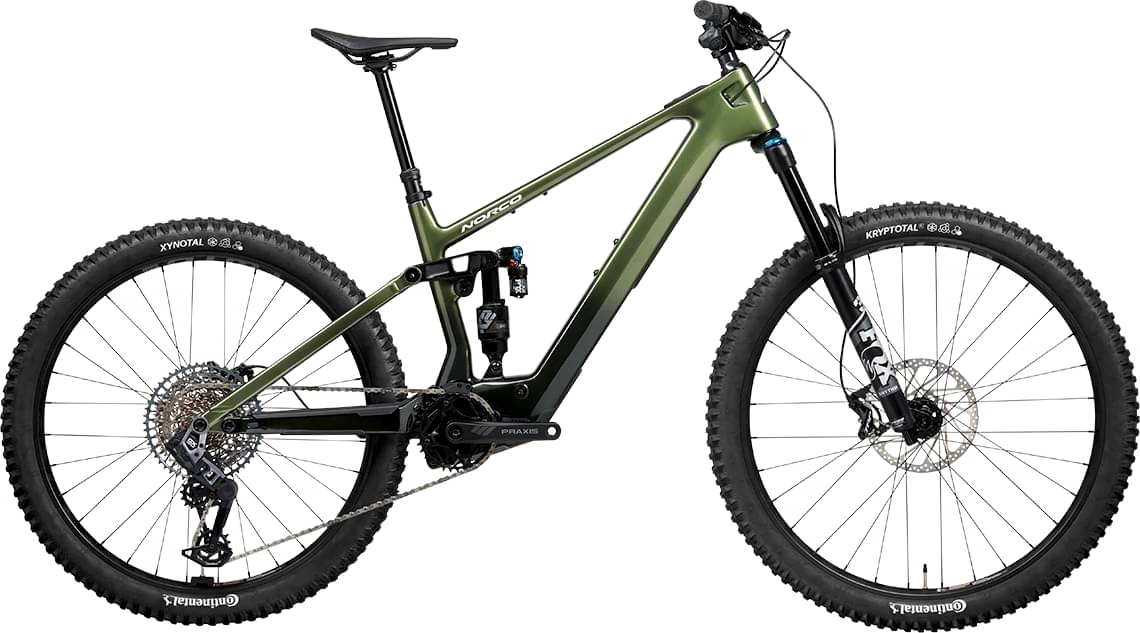

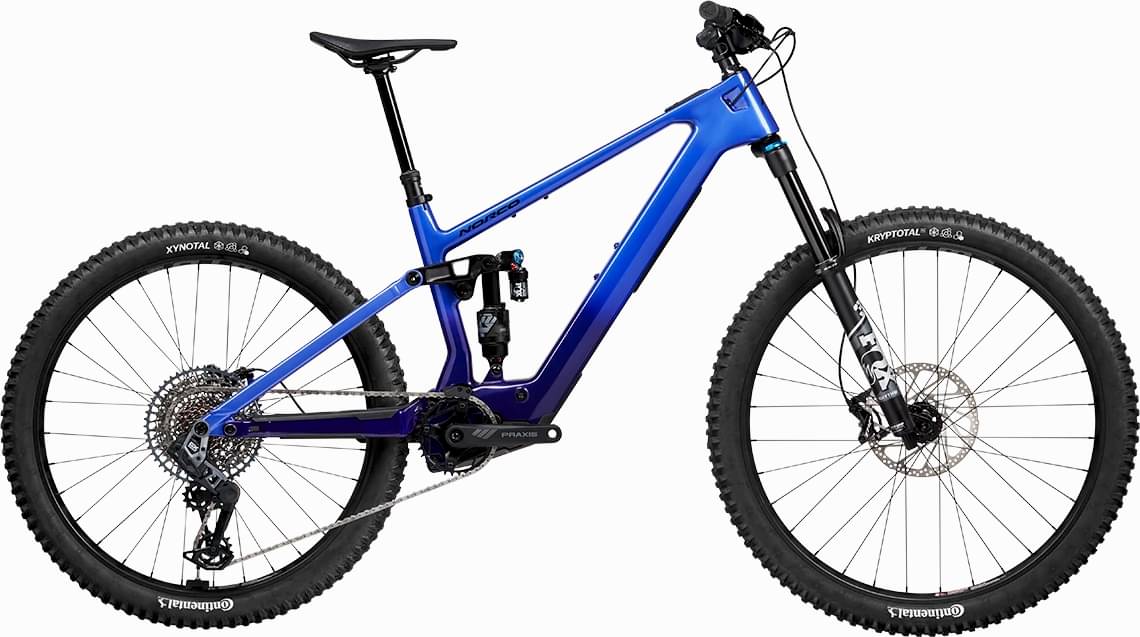

Norco Fluid VLT C2 140 2024
2024 E-bike
Estimate price |
9,306$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 36
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CPT 400Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Suspension Fork
Fox 36 Rhythm, 29", 150mm Travel, 44mm Offset
Rear Shock
Fox FLOAT X2 Performance Elite, 185x55mm Trunnion
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type
Shift Levers
SRAM Pod Ultimate Controller
Cassette
SRAM 1275 T-Type 10-52T
Crank
Praxis Alloy HD eMTB, 165mm
Chain
SRAM GX Eagle T-Type
Wheels
Front Hub
Bear Pawls, 110x15mm Boost, 6-Bolt
Rear Hub
Bear Pawls, Impel 24T, 3-Bearing Steel Driver Body, 148x12mm Boost, 6-Bolt, XD
Rims
WTB KOM Trail 32H, 27.5" Rear, 29" Front, 30mm ID
Tires
Front: Continental Kryptotal 29" x 2.4" Trail, Rear: Continental Xynotal 27.5" x 2.4" Trail
Brakes
Brakes
Front: TRP Trail Evo, 4 Piston, Rear: TRP Trail Evo, 4 Piston
Brake Levers
TRP Trail Evo
Cockpit
Stem
Norco SL 6061 Alloy 40mm Length, 35mm Clamp
Handlebar
6061 DB Alloy, 800mm, 25mm Rise
Grips
WTB Wavelength
Headset
FSA No. 57 ZS, Carbon Top Cover
Seat
Saddle
Fizik Ridon
Seatpost
TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch CPT 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.383 mm | 1.329 mm | 1.28 mm | 1.236 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 750 mm | 779 mm | 808 mm | 838 mm | 867 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm | 646 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 569 mm | 593 mm | 618 mm | 642 mm | 666 mm |
| Seat Tube Angle | 76.5 ° | 76.75 ° | 77 ° | 77.25 ° | 77.5 ° |
| Seat Tube Length | 385 mm | 395 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 436 mm | 440 mm | 444 mm |
| Wheelbase | 1181 mm | 1210 mm | 1243 mm | 1277 mm | 1310 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 715 mm | 701 mm | 703 mm | 720 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
Model Overview
Fluid VLT C2 140 is a Norco E Fluid model. There are 11 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Norco Fluid VLT C3 140 2024 is the most affordable e-bike of this model and has a price of 6882$. On the other hand, Norco Fluid VLT C1 130 2024, is the most expensive and costs 13765$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2024 and its price was 8470$. Comparing this to the average Trail e-bike price, we see that the price is 151.71% more expensive.
Overview of components
Fork
The Fluid VLT C2 140 comes factory-installed with the Fox Rhythm Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Fox FLOAT X2 Performance Elite, with a travel distance of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Fluid VLT C2 140 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid VLT C2 140 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 154 cm – 195 cm (5.05 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Norco Fluid VLT C2 140 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
