Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 14" -
Suspension Rigid -
Drivetrain Single Speed
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight aluminum low standover frame
Suspension Fork
BMX type steel
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
16T sprocket
Crank
Aluminum narrow-wide 30T 3-pc crankset - Black
Bottom Bracket
Cartridge bearing square taper BB
Pedals
Resin black Jr. BMX flat pedal 1/2" w/bearing"
Wheels
Front Hub
Steel hub w/ball bearing
Rear Hub
Falcon coaster brake w/16T sprocket
Rims
Aluminum 14" MTB"
Tires
14" x 1.95"" with MTB tread"
Brakes
Brakes
N/A
Brake Levers
Jr. MTB alloy lever w/reach adjust
Cockpit
Stem
Kalloy 35mm ext., 1-1/8" threadless MTB"
Handlebar
Jr. MTB 530mm wide x 80mm rise
Grips
Jr. MTB type, soft rubber, 95mm length
Seat
Saddle
Norco Jr. saddle w/ cutaway
Seatpost
Aluminum with micro adjust top, 150mmx27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | N/A |
|---|---|
| Stack Reach Ratio | 1.22 mm |
| Bottom Bracket Height | 207 mm |
| Front Center | 368 mm |
| Rake | 33 mm |
| Stack | 288 mm |
| Reach | 236 mm |
| Top Tube Length | 336 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 195 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 254 mm |
| Wheelbase | 619 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 419 mm |
| Wheels | 14" |
Model Overview

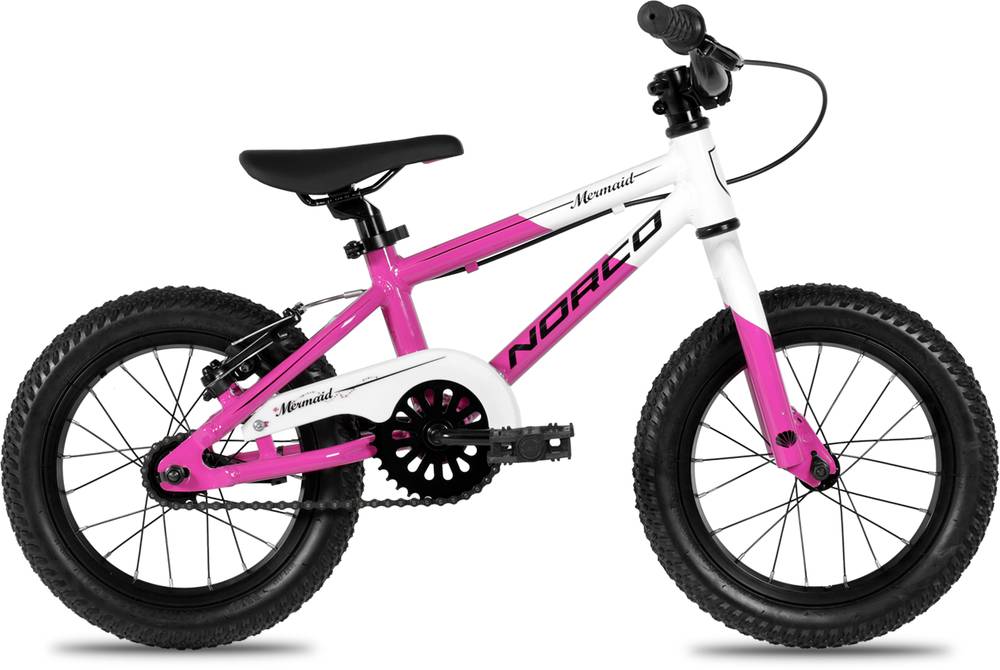

Mermaid 14″ completes the Norco Mermaid model. There are 19 frames that carry this model name. You can easily view all of the Norco Mermaid frames models from 2017, here.
Model range prices
Norco Mermaid 10″ Run 2017 is the most affordable frame of this model and has a price of 119$. On the other hand, Norco Mermaid 16″ 2017, is the most expensive and costs 219$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Youth frames average price
If you want an acceptable Youth frame you should know that the average price is 367$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Norco Mermaid 14″ price was 209$. Comparing this to the average Youth frame price, we see that the price is 75.6% lower.
Overview of components
Fork material
When it comes to the fork, this frame has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the frame.
