Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Float 34
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Aluminum 110mm travel
Suspension Fork
Fox 34 Float Performance 29 110x15 120mm travel
Rear Shock
110x15 120mm travel REAR SHOCK
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM XG 1150 10-42T
Crank
Race Face Affect w/32T
Bottom Bracket
Race Face 73mm
Chain
SRAM PC 1130 11sp
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
SRAM MTH 716 15x110mm
Rear Hub
SRAM MTH 746 148x12mm XD
Rims
Alex DP23 double wall 29er I23 tubeless ready
Tires
N/A
Brakes
Brakes
SRAM DB 3 hydraulic disc w / 160mm rotor
Brake Levers
SRAM DB 3
Disk Rotors
N/A
Cockpit
Stem
Alloy 3D forged 50mm length
Handlebar
Norco 6061 DB alloy 760mmx25mm
Grips
Norco lock on grip
Headset
Cane Creek 10 Series
Seat
Saddle
SDG Circuit Mtn
Seatpost
KS E-Ten Integra Stealth w/remote 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 692 mm | 717 mm | 743 mm | 769 mm |
| Rake | 52 mm | 51 mm | 50 mm | 50 mm |
| Trail | 92 mm | 93 mm | 94 mm | 94 mm |
| Stack | 594 mm | 591 mm | 600 mm | 610 mm |
| Reach | 407 mm | 434 mm | 457 mm | 479 mm |
| Top Tube Length | 564 mm | 595 mm | 625 mm | 655 mm |
| Seat Tube Angle | 75.4 ° | 74.9 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 93 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 418 mm | 423 mm | 428 mm | 433 mm |
| Wheelbase | 1107 mm | 1137 mm | 1168 mm | 1199 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 754 mm | 746 mm | 751 mm | 766 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 110 mm | 110 mm | 110 mm | 110 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

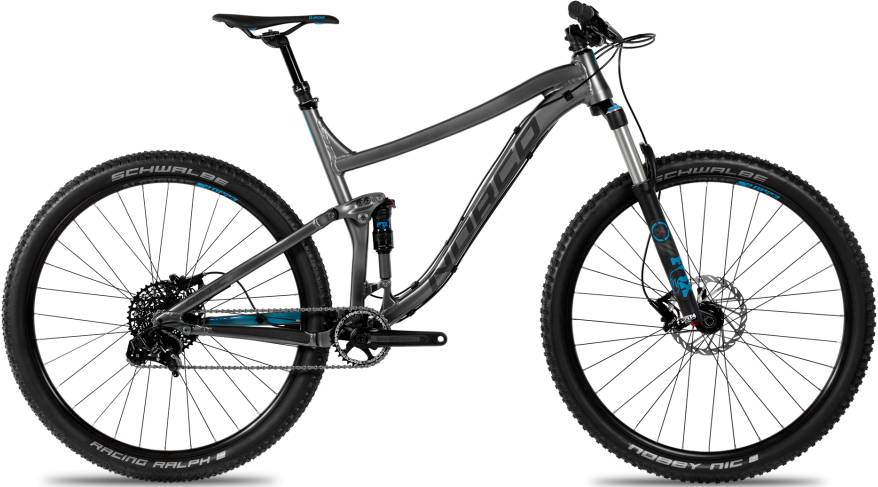

Optic A9.1 completes the Norco Optic model. Norco released 96 bikes variations of this model so far. You can easily view all of the Norco Optic bikes models from 2016, here.
Model range prices
The most economical model, the Norco Optic A9.2 2016 has a starting price of 2599$. Norco Optic C7.1 2016 on the other hand is the most expensive at 5999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3199$. Comparing the average cost of a Crosscountry bike to this one, you will see that Optic A9.1 price is 67.93% higher.
Optic A9.1 components
Fork
Norco Optic A9.1 2016 bike is equipped with the Fox Performance Float 34 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Norco Optic A9.1 bike has the 110×15 120mm travel REAR SHOCK model installed, and has a travel of 110mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Optic A9.1 2016 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Optic A9.1 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Norco Optic A9.1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Norco model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
