Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, Praxis -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™
Suspension Fork
Fox Performance Elite FLOAT 36, GRIP2, 140mm Travel, 42mm Offset
Rear Shock
Fox Performance Elite FLOAT DPX2, 190x45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100
Shift Levers
Shimano XT SL-M8100 I-Spec EV
Cassette
Shimano XT CS-M8100, 10-51T, 12 Speed
Crank
Praxis Girder Carbon M30, 32T, 170mm
Bottom Bracket
Praxis M30 BB92
Chain
Shimano XT CN-M8100
Wheels
Front Hub
Shimano XT HB-8110-B, 15x110mm Boost, Center Lock
Rear Hub
Shimano XT FH-8110-B 12x148mm Boost, 32H, Micro Spline, Center Lock
Rims
Stan's Flow S1 29", 32H
Tires
Front: Vittoria Mazza 2.4" Trail G2.0, Rear: Vittoria Mazza 2.4" Trail G2.0
Brakes
Brakes
Front: Shimano XT BR-M8020, 4 Piston, Metallic Pads, Rear: Shimano XT BR-M8020, 4 Piston, Metallic Pads
Brake Levers
Shimano XT BR-M8020
Cockpit
Stem
Norco 6061 Alloy, 45mm Length, 35mm Clamp
Handlebar
TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Grips
DMR Deathgrip
Headset
FSA Internal Sealed Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 735 mm | 769 mm | 803 mm | 838 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 567 mm | 600 mm | 632 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 415 mm | 445 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 420 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1152 mm | 1191 mm | 1230 mm | 1270 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 659 mm | 675 mm | 693 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model

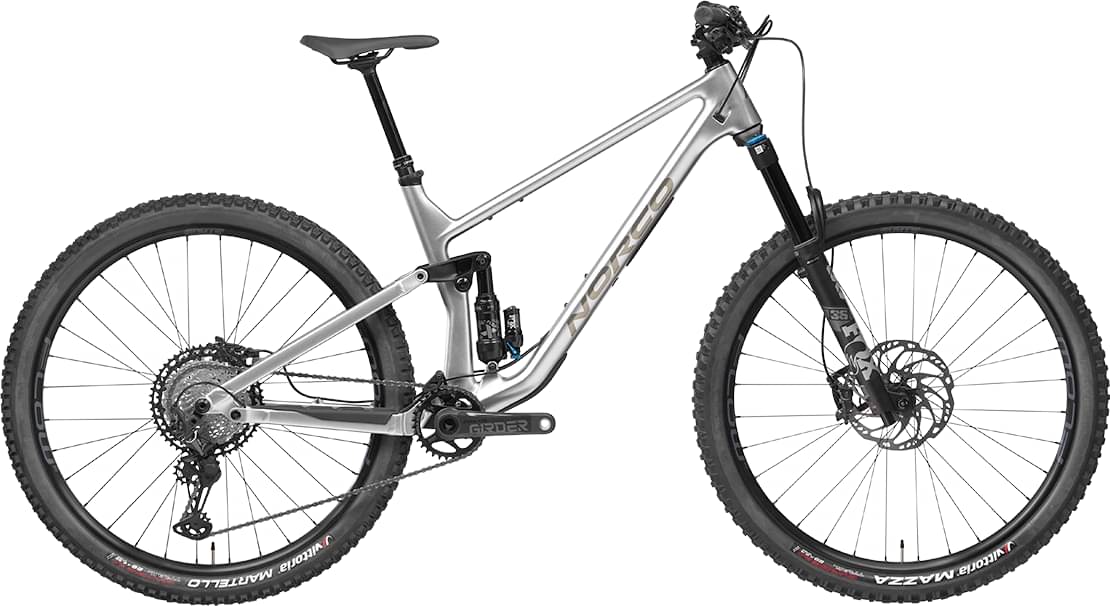

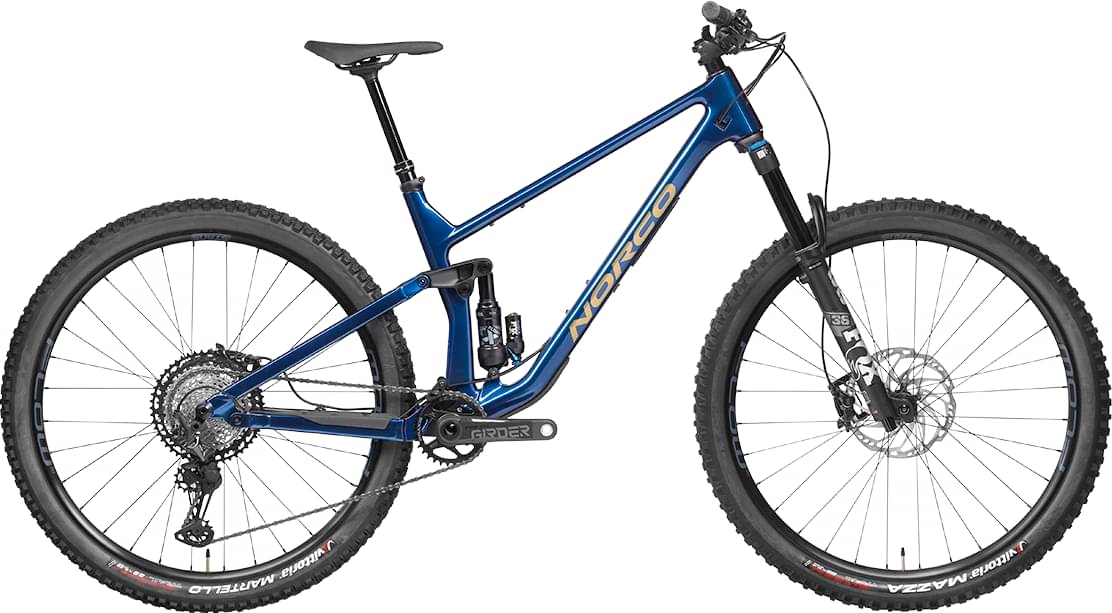

Optic C2 Shimano completes the Norco Optic model. Norco released 96 bikes variations of this model so far. Take a sneak peek at all Norco Optic bikes models from 2022, by clicking here.
Model range prices
Norco Optic C3 2022 is the most affordable bike of this model and has a price of 4299$. On the other hand, Norco Optic C AXS 2022, is the most expensive and costs 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5599$. Comparing the average cost of a Trail bike to this one, you will see that Optic C2 Shimano price is 102.72% more expensive.
Overview of components
Fork
The Optic C2 Shimano comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Performance Elite FLOAT DPX2, with a travel distance of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Optic C2 Shimano model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Optic C2 Shimano has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Optic C2 Shimano comes in 4 sizes, that range from 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Norco Optic C2 Shimano includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
