Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork RockShox Pike Select
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Front Triangle/Aluminum Rear, 125mm Travel, Ride Aligned™
Suspension Fork
RockShox Pike Select RC, DebonAir, 140mm Travel, 42mm Offset
Rear Shock
RockShox Super Deluxe Ultimate DH Custom RC, 190x45mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100
Shift Levers
Shimano SLX SL-M7100-IR I-Spec EV
Cassette
Shimano SLX, 10-51T, 12 Speed
Crank
Shimano FC-MT6100-1, 32T, 170mm
Bottom Bracket
Shimano BB-MT500 PF92
Chain
Shimano Deore
Chain Guide
Add GW or e*thirteen
Chain Tensioner
Add GW or e*thirteen
Wheels
Front Hub
Shimano HB-MT400-B, 15x110mm Boost, Center Lock
Rear Hub
Shimano FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock
Rims
Stan's Flow S1 29", 32H
Tires
Vittoria Mazza 2.4" Trail G2.0
Brakes
Brakes
Shimano BR-MT420, 4 Piston, Metallic Pads
Brake Levers
Shimano BR-MT420
Disk Rotors
Shimano SM-RT64, 203mm
Cockpit
Stem
6061 Alloy, 45mm Length, 35mm Clamp
Handlebar
TranzX Butted 6061 Alloy, 780mm, 20mm Rise
Grips
DMR Deathgrip
Headset
FSA Internal Sealed Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 735 mm | 769 mm | 803 mm | 838 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 567 mm | 600 mm | 632 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 415 mm | 445 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 420 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1152 mm | 1191 mm | 1230 mm | 1270 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 659 mm | 675 mm | 693 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
Model Overview

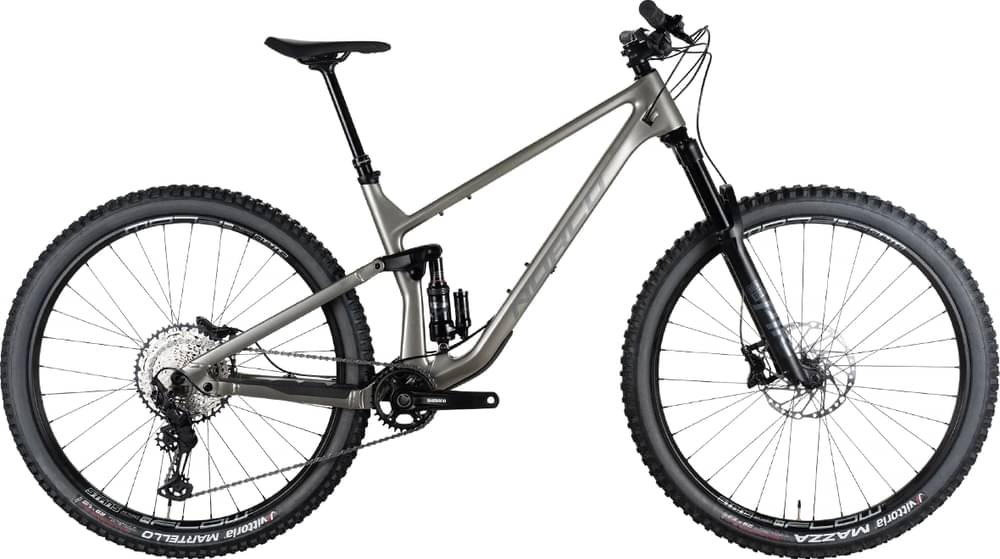

Optic C3 is a Norco Optic model. Norco launched 96 bikes of this model so far. You can easily view all of the Norco Optic bikes models from 2021, here.
Model range prices
The most economical model, the Norco Optic C3 2021 has a starting price of 4099$. Norco Optic C AXS 2021 on the other hand is the most expensive at 10499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 4099$. Doing a quick comparison, we notice that Optic C3 price is 48.41% higher than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox Pike Select fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Norco Optic C3 bike has the RockShox Super Deluxe Ultimate DH Custom RC model installed, and has a travel of 125mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Optic C3 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Optic C3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Optic C3 comes in 4 sizes, that range from 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
