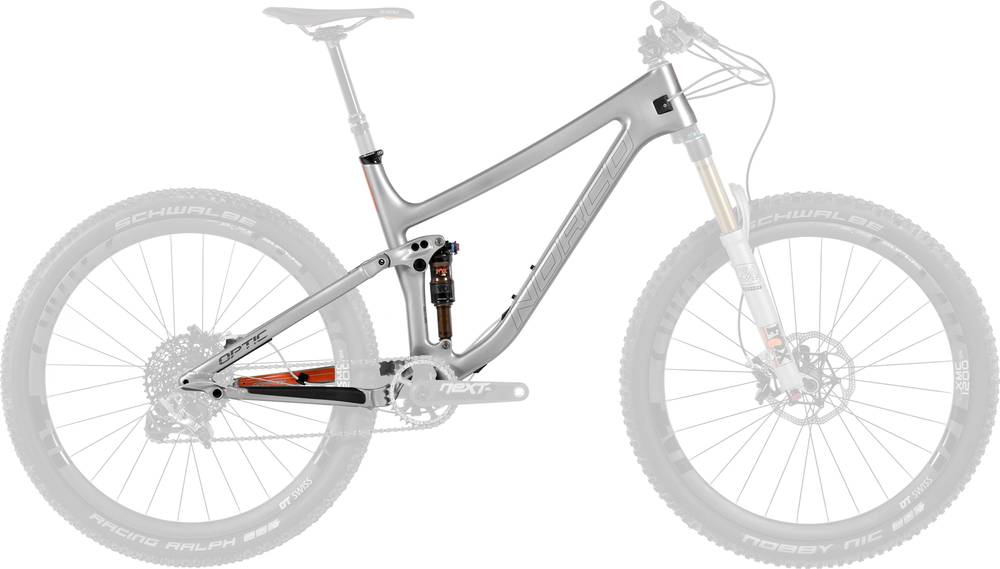

Norco Optic C7.1 Framekit 2017
2017 Mountain
Estimate price |
2,199$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Trail frame 120mm travel
Suspension Fork
N/A
Rear Shock
Fox Float Factory EVOL w/ dual remote
Cockpit
Headset
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 660 mm | 687 mm | 713 mm | 739 mm | 765 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm | 44 mm |
| Trail | 104 mm | 104 mm | 104 mm | 103 mm | 104 mm |
| Stack | 572 mm | 581 mm | 590 mm | 599 mm | 609 mm |
| Reach | 385 mm | 407 mm | 430 mm | 452 mm | 475 mm |
| Top Tube Length | 529 mm | 559 mm | 589 mm | 619 mm | 649 mm |
| Seat Tube Angle | 75.9 ° | 75.5 ° | 75 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 380 mm | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 97 mm | 107 mm | 117 mm | 127 mm | 137 mm |
| Chainstay Length | 417 mm | 422 mm | 427 mm | 432 mm | 437 mm |
| Wheelbase | 1077 mm | 1108 mm | 1139 mm | 1171 mm | 1202 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 747 mm | 747 mm | 747 mm | 757 mm | 777 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Optic C7.1 Framekit is a Norco Optic model. Norco launched 96 frames of this model so far. Take a sneak peek at all Norco Optic frames models from 2017, by clicking here.
Model range prices
Norco Optic C9.1 Framekit 2017 is the most affordable frame of this model and has a price of 2199$. On the other hand, Norco Optic C7.1 Framekit 2017, is the most expensive and costs 2199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2017 and its price was 2199$. In conclusion, this frame price is 26.67% higher than the price of the average Trail frame.
Overview of components
Rear Shock
The Optic C7.1 Framekit has a rear shock with a travel of 120mm. The model Fox Float Factory EVOL w/ dual remote is the one installed in this frame. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
