Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Factory Float 34
-
Groupset XX1, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Trail frame 110mm travel
Suspension Fork
Fox 34 Float Factory 29 Boost 110x15mm 120mm travel
Rear Shock
Fox Float DPS Factory EVOL
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM XG 1175 11sp 10-42T
Crank
Race Face Next SL carbon 32T
Bottom Bracket
Race Face Pressfit BB 92
Chain
SRAM CN PC X1 11sp
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XMC 1200 15x110mm
Rear Hub
DT Swiss XMC 1200 148x12mm
Rims
DT XMC 1200 Carbon 29er wheelset
Tires
N/A
Brakes
Brakes
SRAM Guide Ult. hydrauilic disc w/160mm rotor
Brake Levers
SRAM Guide Ultimate
Disk Rotors
N/A
Cockpit
Stem
Race Face Turbine 35 50mm length
Handlebar
Race Face NEXT carbon 760mm width
Grips
SDG ODI USA lock on grips
Headset
Cane Creek 40 Series
Seat
Saddle
SDG Circuit Mtn with chromoly rails
Seatpost
Rockshox Reverb stealth 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 332 mm | 336 mm | 332 mm | 332 mm |
| Front Center | 692 mm | 717 mm | 743 mm | 769 mm |
| Rake | 52 mm | 51 mm | 50 mm | 50 mm |
| Trail | 92 mm | 93 mm | 94 mm | 94 mm |
| Stack | 594 mm | 591 mm | 600 mm | 610 mm |
| Reach | 407 mm | 434 mm | 457 mm | 479 mm |
| Top Tube Length | 564 mm | 595 mm | 625 mm | 655 mm |
| Seat Tube Angle | 75.4 ° | 74.9 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 93 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 418 mm | 423 mm | 428 mm | 433 mm |
| Wheelbase | 1107 mm | 1137 mm | 1168 mm | 1199 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 748 mm | 748 mm | 753 mm | 773 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 110 mm | 110 mm | 110 mm | 110 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

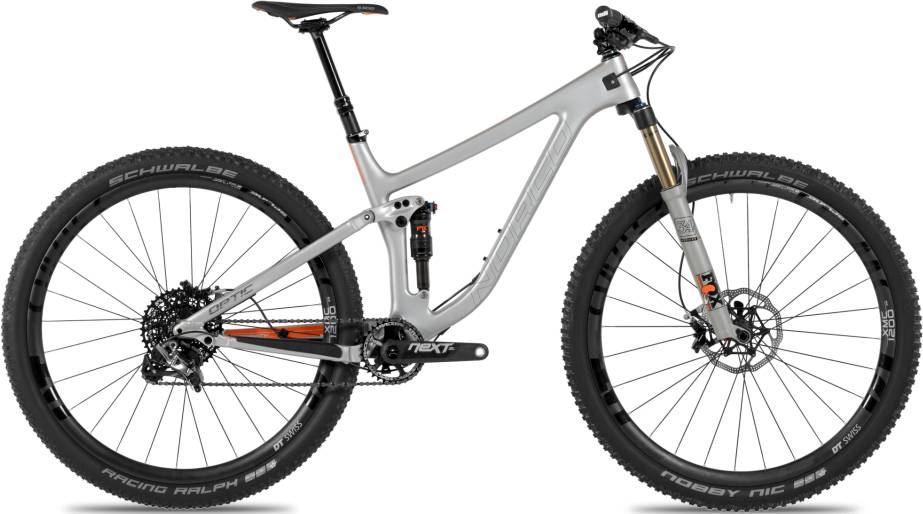

Model Overview
Optic C9.1 belongs to the Norco Optic model. Norco released 96 bikes variations of this model so far. You can easily view all of the Norco Optic bikes models from 2016, here.
Model range prices
Norco Optic A9.2 2016 is the most affordable bike of this model and has a price of 2599$. On the other hand, Norco Optic C7.1 2016, is the most expensive and costs 5999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. Comparing the average cost of a Crosscountry bike to this one, you will see that Optic C9.1 price is 214.91% higher.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Optic C9.1 has a rear shock with a travel of 110mm. The model Fox Float DPS Factory EVOL is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Optic C9.1 bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Norco Optic C9.1 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
