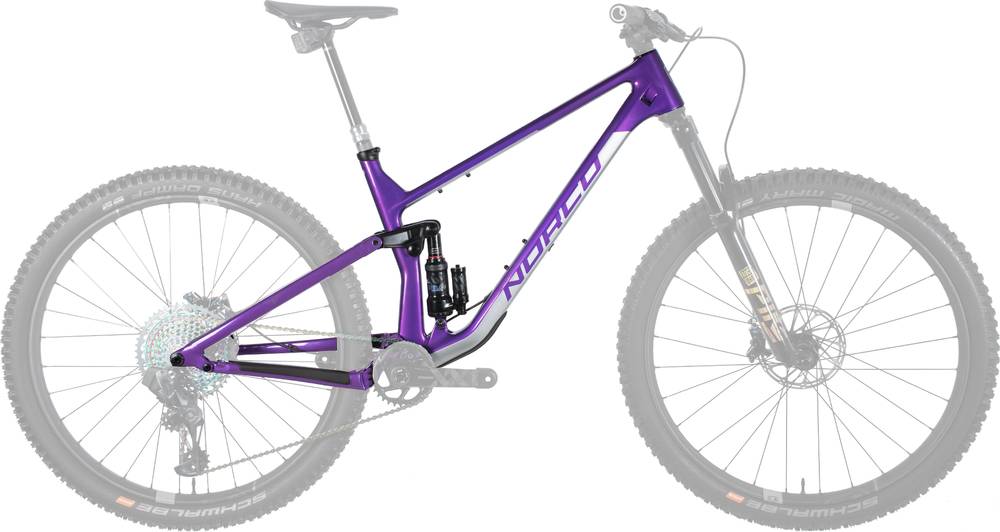

Norco Optic Carbon Frame 2020
2020 Mountain
Estimate price |
2,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 125mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Front Trangle/Aluminum Rear, 125mm Travel
Rear Shock
RockShox Super Deluxe Ultimate DH
Cockpit
Headset
FSA Internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.31 mm | 1.25 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 735 mm | 769 mm | 803 mm | 838 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 606 mm | 615 mm | 624 mm | 633 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 567 mm | 600 mm | 632 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 395 mm | 415 mm | 445 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 420 mm | 425 mm | 430 mm | 435 mm |
| Wheelbase | 1152 mm | 1191 mm | 1230 mm | 1270 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 659 mm | 675 mm | 693 mm | 714 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Optic Carbon Frame belongs to the Norco Optic model. Norco launched 96 frames of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail frames
According to our math, the average price for a trustworthy Trail frame is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 2499$. In conclusion, this frame price is 43.95% higher than the price of the average Trail frame.
Optic Carbon Frame components
Rear Shock
Norco Optic Carbon Frame frame has the RockShox Super Deluxe Ultimate DH model installed, and has a travel of 125mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Optic Carbon Frame comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
