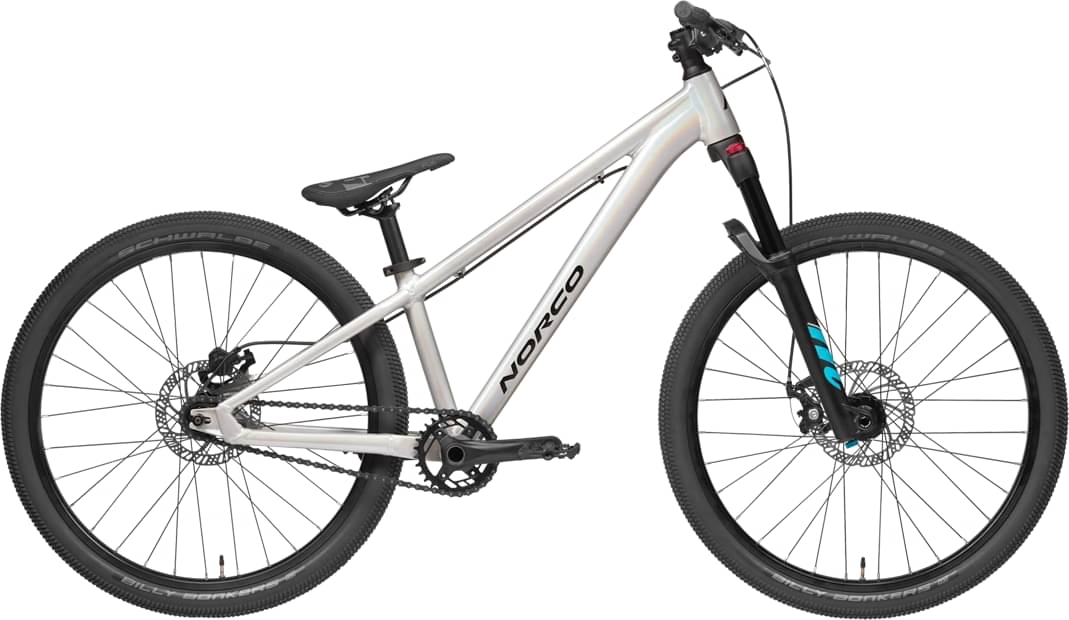

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork Manitou
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Sizing
Recommended size guide.
24"
128cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X6 Aluminum DJ 24"
Suspension Fork
Manitou Kids DJ, 100mm Travel
Drivetrain
Cassette
14T Single Speed
Crank
Alloy Two Piece, 30T Narrow Wide, 140mm
Chain
KMC Z1, Black
Pedals
SDG Composite Jr.
Wheels
Front Hub
Novatec Sealed Bearing, 15x100mm, 6 Bolt
Rear Hub
Novatec Sealed Bearing Nutted, Single Speed Cassette, 135mm, 6 Bolt
Rims
Alex MUS 30, 24", 32H, 23.5mm ID
Tires
Front: Schwalbe Billy Bonkers 2.25", Rear: Schwalbe Billy Bonkers 2.25"
Brakes
Brakes
Front: Tektro MD-280 Mechanical Disc, Rear: Tektro MD-280 Mechanical Disc
Brake Levers
Tektro Hydro Rear, Cable Front
Cockpit
Stem
Alloy, 35mm Length, 31.8mm Clamp
Handlebar
SDG Kids Alloy, 640mm, 25mm Rise
Grips
SDG Jr.
Headset
FSA Sealed Bearing Tapered
Seat
Saddle
SDG Fly Jr.
Seatpost
Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.59 mm |
| Bottom Bracket Height | 263 mm |
| Front Center | 595 mm |
| Rake | 40 mm |
| Trail | 77 mm |
| Stack | 551 mm |
| Reach | 347 mm |
| Top Tube Length | 518 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 290 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 362 mm |
| Wheelbase | 952 mm |
| Bottom Bracket Drop | 50 mm |
| Standover Height | 514 mm |
| Wheels | 24" |
| Rider Min Height | 128 cm |
| Rider Max Height | 142 cm |
Model Overview
Rampage 4.1 is part of the Norco Rampage model. Norco released 48 bikes variations of this model so far. Take a sneak peek at all Norco Rampage bikes models from 2023, by clicking here.
Model range prices
Norco Rampage 2.2 2023 is the most economical model, with a starting price of 799$. Norco Rampage Team 2023 on the other hand costs 3099$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Dirt Jump bikes
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2023, its price was 1349$. In conclusion, this bike price is 56.32% higher than the price of the average Dirt Jump bike.
Overview of components
Fork
Norco Rampage 4.1 2023 bike is equipped with the Manitou fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Rampage 4.1 bike is equipped with the 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
When you want to stop the bike in time, the brakes are vital. The Rampage 4.1 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Norco Rampage 4.1 2023 is available in one size only. In conclusion, double-check its size to make sure it’s a good fit for you.
