Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Range 27.5 (650B) 160 mm travel
Rear Shock
Fox Float Performance CTD air shock, XV "high volume" (8.5"x2.5") , ( 216 x 63.5 mm)
Cockpit
Headset
Cane Creek 40 1.5" to 1-1/8" tapered internal
Seat
Seatpost
Rockshox Reverb post (with remote) , 30.9 mm, 125 mm adjustment travel. XS and SM with 380 mm length, Med , LG and XL with 420 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - | - | - |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.46 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 674 mm | 699 mm | 722 mm | 746 mm | 770 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 583 mm | 592 mm | 602 mm | 611 mm | 620 mm |
| Reach | 373 mm | 394 mm | 412 mm | 432 mm | 453 mm |
| Top Tube Length | 542 mm | 569 mm | 595 mm | 622 mm | 649 mm |
| Seat Tube Angle | 73.9 ° | 73.6 ° | 73.2 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 416 mm | 420 mm | 424 mm | 429 mm | 433 mm |
| Wheelbase | 1090 mm | 1119 mm | 1146 mm | 1174 mm | 1203 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

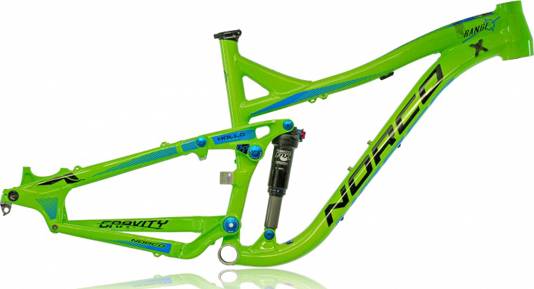

Range 1 Framekit belongs to the Norco Range model. 82 frames variations carry this model name so far. Take a sneak peek at all Norco Range frames models from 2013, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Range 1 Framekit components
Rear Shock
The shock that’s installed on this frame is Fox Float Performance CTD air shock, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Dropper post
Norco Range 1 Framekit comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
