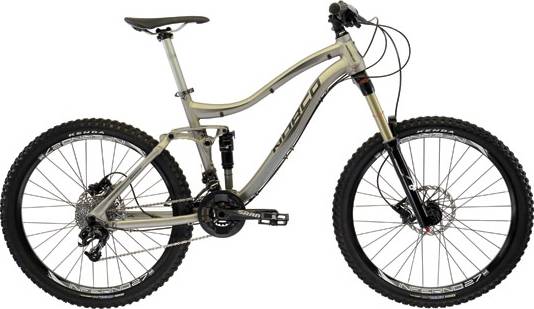

Norco Range 3 2012
2012 Mountain
Estimate price |
2,700$
Weight | 15.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik
-
Groupset X5, SRAM -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RANGE all mountain frame , 160 mm travel , 6061 aluminum , hydroformed mainframe tubing
Suspension Fork
Rockshox Lyrik U-Turn (115-160 mm), tapered steer tube, 20 mm dropout
Rear Shock
X FUSION 02 RCX w/ AV air sleeve
Drivetrain
Rear Derailleur
SRAM X5 mid cage
Front Derailleur
SRAM X5
Shift Levers
SRAM X5 trigger shifter
Cassette
SRAM PG 1030 11-36T 10 sp cass.
Crank
SRAM S1000 crank BG/33/22T GXP BB and SRAM rock guard
Bottom Bracket
N/A
Chain
KMC X 10
Pedals
Norco alloy flat pedal
Wheels
Front Hub
KT 20 mm front (double sealed bearing)
Rear Hub
Shimano 525 rear hub 6 bolt disc
Rims
Sun Inferno 27 mm width AM trail rim
Spokes
Black stainless steel spokes
Tires
Kenda Nevagal 26 x 2.35
Brakes
Brakes
Avid ELIXER 1 hydraulic disc w/ 180 mm rotor
Brake Levers
Avid Elixer 1
Cockpit
Stem
Short reach MTB stem
Handlebar
Norco 740 mm wide 25 mm rise bar. 6061 butted alloy
Grips
Norco Lock on grips
Headset
FSA #57 E sealed (tapered internal) 1.5Ó to 1-1/8Ó
Seat
Saddle
Norco MTB saddle
Seatpost
Norco 6061 alloy double bolt 2D forged head
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.47 mm | 1.43 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm | 360 mm |
| Front Center | 677 mm | 697 mm | 719 mm | 739 mm | 761 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 572 mm | 572 mm | 581 mm | 590 mm | 599 mm |
| Reach | 369 mm | 389 mm | 406 mm | 423 mm | 440 mm |
| Top Tube Length | 545 mm | 565 mm | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 395 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1109 mm | 1129 mm | 1150 mm | 1171 mm | 1192 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 780 mm | 765 mm | 765 mm | 773 mm | 785 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Range 3 is part of the Norco Range model. There are 82 bikes that carry this model name. Check out the entire range from 2012 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Range 3 2012 has a starting price of 2700$. Norco Range LE 2012 on the other hand is the most expensive at 9000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Norco Range 3 price was 2700$. In conclusion, this bike price is 33.3% lower than the price of the average Enduro bike.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Range 3 weighs 15.45 kg (34.06 lbs) and is a bit heavier than the average. In short, the average Enduro bike weight is 8.27% lower than this one.
Range 3 components
Fork
The RockShox Lyrik is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the X FUSION 02 RCX w/ AV air sleeve rear shock model, which has a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Range 3 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
