Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Range Aluminum 29 150mm travel, 650B 160mm travel
Suspension Fork
Rockshox Yari RC 160mm (29), 170mm (650B) Boost
Rear Shock
Rockshox Deluxe RL Debonair
Drivetrain
Rear Derailleur
Shimano SLX RD M-7000 Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX M-7000 11 speed
Cassette
Sunrace 11-46T 11 sp
Crank
Race Face Aeffect w/ direct mount 30T (29), 32T (650B)
Bottom Bracket
Comes with Crank (threaded 73mm )
Chain
SRAM PC 1110 11 speed chain
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Novatec 110x15 sealed bearing disc hub
Rear Hub
Novatec 148x12 w 5 sealed bearing
Rims
WTB STP I29 TCS rim, 29mm
Spokes
Shadar stainless steel
Tires
Maxxis High Roller II 2.3 Folding EXO
Brakes
Brakes
Tektro HD-M745 4 piston hydraulic w/203mm rotor
Brake Levers
Tektro HD levers
Cockpit
Stem
Alloy 6061 40mm stem (29), 50mm (650B)
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Grips
Norco lock on grip
Headset
FSA #57E sealed cartridge bearing
Seat
Saddle
WTB Volt
Seatpost
JD Trans X post 100mm XS/SM, 125mm M/L/XL 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 760 mm | 785 mm | 810 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 115 mm | 115 mm | 115 mm |
| Stack | 624 mm | 624 mm | 628 mm |
| Reach | 435 mm | 460 mm | 484 mm |
| Top Tube Length | 608 mm | 638 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° |
| Seat Tube Length | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 104 mm |
| Chainstay Length | 431 mm | 436 mm | 441 mm |
| Wheelbase | 1189 mm | 1219 mm | 1250 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm |
| Standover Height | 803 mm | 798 mm | 790 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

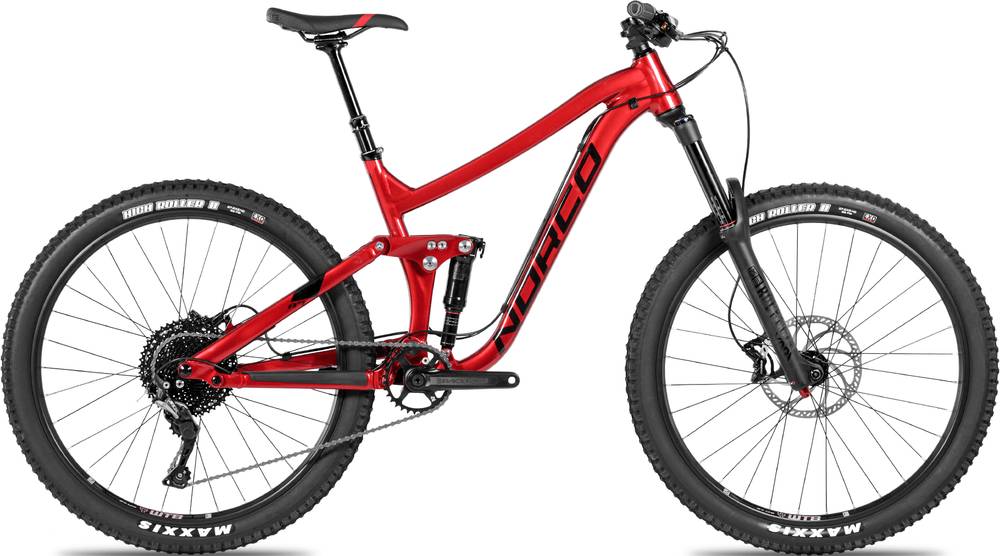

Range A3 29 is part of the Norco Range model. Norco released 82 bikes variations of this model so far. Take a sneak peek at all Norco Range bikes models from 2018, by clicking here.
Model range prices
Norco Range A2 27.5 2018 is the cheapest bike model and costs 2499$. Norco Range C1 29 2018 is the most expensive one and costs 7199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 2799$. Doing a quick comparison, we notice that Range A3 29 price is 28.58% lower than the average cost of an Enduro bike.
Range A3 29 components
Fork
The RockShox Yari RC is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Norco Range A3 29 bike has the Rockshox Deluxe RL Debonair model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Range A3 29 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Norco Range A3 29 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
