Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork X Fusion
-
Groupset Deore, X5 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Range carbon 650B frame w/160mm travel
Suspension Fork
X Fusion Sweep RL2 air spring 160mm 15mm
Rear Shock
X Fusion 02 R with AV air sleeve
Drivetrain
Rear Derailleur
Shimano Deore M610 Shadow Direct mount SGS
Front Derailleur
SRAM X-5 high direct mount 10sp
Shift Levers
Jagwire LEX housing
Cassette
Shimano HG-50 11-36T 10sp
Crank
Race Face Chester 2x10 36/22T
Bottom Bracket
Race Face pressfit BB92
Chain
SRAM PC1031 10sp
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Shimano Deore 15mm front hub w/center lock
Rear Hub
Shimano Deore 142x12mm rear hub/center lock
Rims
Sun Inferno 27 650B trail / AM rim
Tires
Maxxis High Roller II 650Bx2.30 DC Folding
Brakes
Brakes
Shimano Deore M615 hydraulic disc w/180mm
Brake Levers
Shimano Deore
Disk Rotors
N/A
Cockpit
Stem
Alloy MTB stem w/ 4 bolt front clamp 60mm
Handlebar
Norco 6061 alloy DB 800x25mm rise bar
Grips
Norco lock on
Headset
FSA Orbit C-40-ACB (No.42/ACB internal )
Seat
Saddle
WTB Volt Sport saddle
Seatpost
KS E-Ten adjustable post w/remote 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.45 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 705 mm | 728 mm | 752 mm | 776 mm |
| Rake | 43 mm | 44 mm | 45 mm | 44 mm |
| Trail | 111 mm | 110 mm | 109 mm | 110 mm |
| Stack | 598 mm | 607 mm | 616 mm | 625 mm |
| Reach | 402 mm | 420 mm | 440 mm | 461 mm |
| Top Tube Length | 577 mm | 603 mm | 630 mm | 657 mm |
| Seat Tube Angle | 73.6 ° | 73.2 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 427 mm | 431 mm | 435 mm | 439 mm |
| Wheelbase | 1131 mm | 1158 mm | 1187 mm | 1215 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 765 mm | 764 mm | 766 mm | 760 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

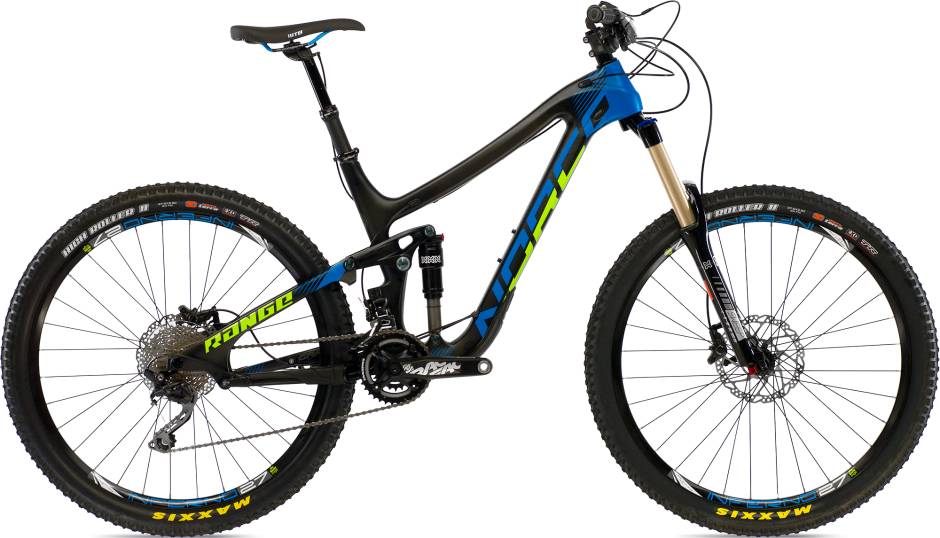

Range C 7.4 is a Norco Range model. 82 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Model range prices
Norco Range A 7.2 2015 is the cheapest bike model and costs 2200$. Norco Range C 7.1 2015 is the most expensive one and costs 7115$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2015 for 3465$. Comparing this to the average Enduro bike price, we see that the price is 3.87% smaller.
Overview of components
Fork
The X Fusion is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the X Fusion 02 R with AV air sleeve model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Range C 7.4 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Range C 7.4 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Range C 7.4 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Norco Range C 7.4 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
