Bike details
Overview
Key information split into simple groups.

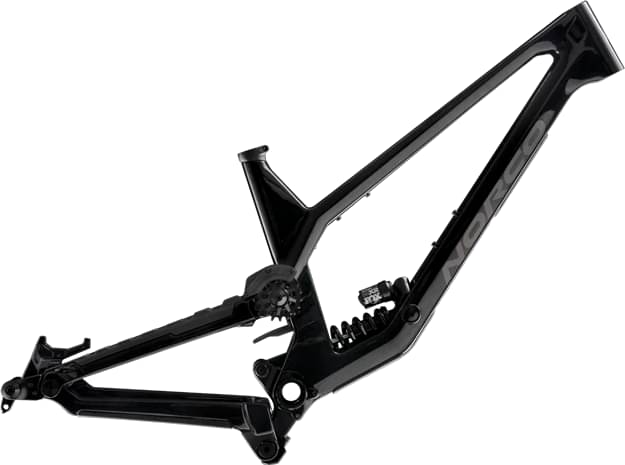

Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 170mm -
Suspension Full
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon, 170mm Travel, UDH, Ride Aligned™
Rear Shock
FOX DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)
Drivetrain
Chain Guide
Custom MRP SXg
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 764 mm | 804 mm | 843 mm | 882 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 138 mm | 140 mm | 142 mm |
| Stack | 622 mm | 634 mm | 645 mm | 657 mm |
| Reach | 424 mm | 454 mm | 484 mm | 514 mm |
| Top Tube Length | 572 mm | 602 mm | 632 mm | 662 mm |
| Seat Tube Angle | 76.5 ° | 76.75 ° | 77 ° | 77.25 ° |
| Seat Tube Length | 370 mm | 395 mm | 410 mm | 455 mm |
| Head Tube Angle | 63.75 ° | 63.5 ° | 63.25 ° | 63 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 444 mm | 444 mm | 446 mm | 451 mm |
| Wheelbase | 1207 mm | 1247 mm | 1289 mm | 1333 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 666 mm | 667 mm | 669 mm | 699 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model
Range Framekit is part of the Norco Range model. Norco released 82 frames variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, this doesn’t mean that if you spend less money on an Enduro frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Norco released this model in 2023, its price was 3999$. Doing a quick comparison, we notice that Range Framekit price is 111.03% higher than the average cost of an Enduro frame.
Overview of components
Rear Shock
As for the rear shock, this frame has the FOX DHX2 Factory Coil model, with a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
Norco Range Framekit frame has 4 sizes, in the range of 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
