Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork X Fusion
-
Groupset X5, SRAM -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2013 Range 650 frame 160 mm travel
Suspension Fork
X Fusion Vengence R 160 mm travel
Rear Shock
X Fusion 02 RL (HV high volume) air 10mm hardware
Drivetrain
Rear Derailleur
SRAM X5 10 speed mid cage
Front Derailleur
SRAM X 5 10 speed FD
Shift Levers
Jagwire LEX housing
Cassette
SRAM PG 1030 10 speed
Crank
SRAM S1000
Bottom Bracket
N/A
Chain
SRAM 10 speed
Chain Tensioner
E-13 TRS stl (dual shift guide)
Pedals
N/A
Wheels
Front Hub
Formula 20 mm
Rear Hub
Formula 142 x 12
Rims
Sun Inferno 27 650B
Tires
Kenda Nevagal 650B x 2.35
Brakes
Brakes
Avid Elixer 1 hydraulic disc
Brake Levers
N/A
Disk Rotors
N/A
Cockpit
Stem
Norco trail stem
Handlebar
Norco alloy 25 mm rise bar x 740 mm width butted
Grips
T-One lock on
Headset
FSA #57B ( tapered internal ) 1.5" to 1-1/8"
Seat
Saddle
Norco AM / FR saddle
Seatpost
Norco alloy double bolt seatpost 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - | - | - |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.46 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 674 mm | 699 mm | 722 mm | 746 mm | 770 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 583 mm | 592 mm | 602 mm | 611 mm | 620 mm |
| Reach | 373 mm | 394 mm | 412 mm | 432 mm | 453 mm |
| Top Tube Length | 542 mm | 569 mm | 595 mm | 622 mm | 649 mm |
| Seat Tube Angle | 73.9 ° | 73.6 ° | 73.2 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 416 mm | 420 mm | 424 mm | 429 mm | 433 mm |
| Wheelbase | 1090 mm | 1119 mm | 1146 mm | 1174 mm | 1203 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |

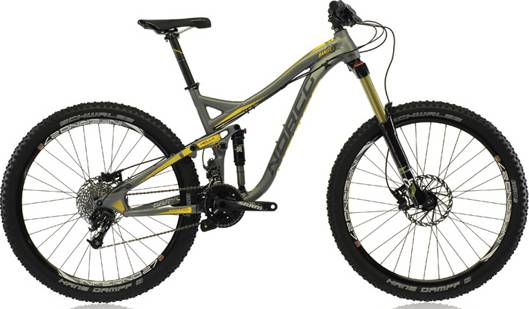

Model Overview
Range Killer B-3 completes the Norco Range model. Norco released 82 bikes variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Model range prices
The most economical model, the Norco Range Killer B-3 2013 has a starting price of 2670$. Norco Range Killer B-1 2013 on the other hand is the most expensive at 5484$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Norco Range Killer B-3 price was 2670$. Comparing this to the average Enduro bike price, we see that the price is 34.79% smaller.
Range Killer B-3 components
Fork
This bike has the X Fusion fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the X Fusion 02 RL (HV high volume) air 10mm hardware rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Range Killer B-3 2013 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
