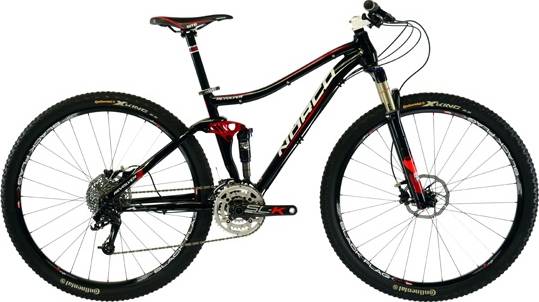

Norco Revolver 1 2012
2012 Mountain
Estimate price |
5,375$
Weight | 11.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset X0, X9 -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver 29er frame , 100 mm travel , hydroformed 6061 aluminum
Suspension Fork
SID 29 with 15 mm axle, tapered steerer tube, 100 mm travel, RL dual air, with remote lockout
Rear Shock
Fox RP 23 LV air shock
Drivetrain
Rear Derailleur
SRAM XO long cage 10 speed
Front Derailleur
SRAM X9 direct mount
Shift Levers
SRAM XO trigger shifter
Cassette
SRAM PG 1050 10 speed 11-36T
Crank
FSA SLK Carbon ( 3 x 10 ) 44/32/22T
Bottom Bracket
N/A
Chain
SRAM PC 1031
Pedals
N/A
Wheels
Front Hub
Sun Black Flag 29er wheelset w/ 15 mm axle
Rear Hub
Sun Black Flag 29er wheelset 142 x 12 mm
Rims
Sun Black Flag Cross Country 29er wheelset
Spokes
N/A
Tires
Continental X King 29 x 2.2 folding bead
Brakes
Brakes
SRAM XO hydraulic disc brakes 160 mm rotor
Brake Levers
SRAM XO
Cockpit
Stem
Norco 3D forged MTB stem
Handlebar
Easton EC70 Low Rise carbon 685 width
Grips
Norco Lock on grips
Headset
FSA #57 E sealed ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
Silverado Race SL
Seatpost
Norco Lite 3D forged double bolt 2014 alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 658 mm | 683 mm | 708 mm | 734 mm |
| Rake | 47 mm | 47 mm | 46 mm | 45 mm |
| Trail | 86 mm | 86 mm | 87 mm | 88 mm |
| Stack | 593 mm | 593 mm | 603 mm | 613 mm |
| Reach | 407 mm | 432 mm | 455 mm | 477 mm |
| Top Tube Length | 577 mm | 602 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 419 mm | 457 mm | 495 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1105 mm | 1130 mm | 1156 mm | 1181 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 781 mm | 776 mm | 791 mm | 812 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Revolver 1 is a Norco Revolver model. Norco released 148 bikes variations of this model so far. You can easily view all of the Norco Revolver bikes models from 2012, here.
Model range prices
The most economical model, the Norco Revolver 3 2012 has a starting price of 2425$. Norco Revolver 1 2012 on the other hand is the most expensive at 5375$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2012 and its price was 5375$. Doing a quick comparison, we notice that Revolver 1 price is 182.15% more expensive than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 11.77 kg (25.95 lbs), the Revolver 1 model is a bit lighter than average. To sum up, it’s 5.35% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
Norco Revolver 1 2012 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox RP 23 LV air shock rear shock model, which has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Revolver 1 2012 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolver 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Norco Revolver 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
