Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC Mid-Mod Carbon 27.5
Suspension Fork
Rock Shox Sid RL 27.5 100mm/15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow 10spd
Front Derailleur
Shimano XT
Shift Levers
Jagwire
Cassette
Shimano SLX 11/36 10spd
Crank
Shimano XT 38/24
Bottom Bracket
Shimano XT w/Truvativ PF30 Adapter
Chain
KMC X10
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss 370 15mm 28H
Rear Hub
DT Swiss 370 142x12 28H
Rims
DT Swiss 392 28H
Tires
Schwalbe Racing Ralph 27.5x 2.25
Brakes
Brakes
Shimano XT 160mm
Brake Levers
Shimano XT
Disk Rotors
N/A
Cockpit
Stem
Norco SL Alloy Stem
Handlebar
Norco DB Lite 720mm Flat Top Bar
Grips
Norco SL Silicon
Headset
FSA No.42 Tapered
Seat
Saddle
SDG Circuit MTN Chromo Rail
Seatpost
Norco SL Alloy Post 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 621 mm | 644 mm | 666 mm | 688 mm | 710 mm |
| Rake | 41 mm | 42 mm | 43 mm | 41 mm | 43 mm |
| Trail | 89 mm | 86 mm | 84 mm | 84 mm | 80 mm |
| Stack | 585 mm | 600 mm | 615 mm | 630 mm | 646 mm |
| Reach | 376 mm | 396 mm | 415 mm | 435 mm | 454 mm |
| Top Tube Length | 543 mm | 570 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 368 mm | 405 mm | 445 mm | 485 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 424 mm | 427 mm | 429 mm | 432 mm | 434 mm |
| Wheelbase | 1040 mm | 1066 mm | 1091 mm | 1115 mm | 1140 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 727 mm | 747 mm | 792 mm | 819 mm | 847 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

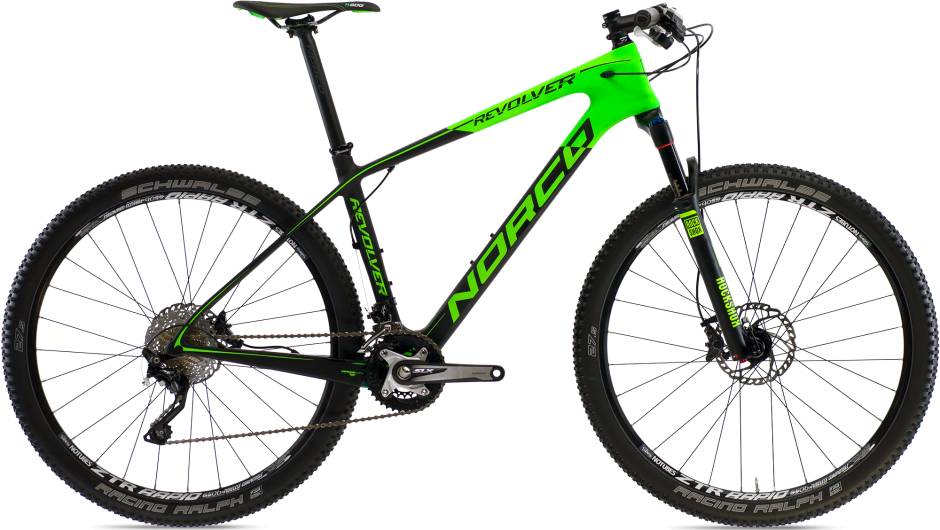

Model Overview
Revolver 7.1 belongs to the Norco Revolver model. Norco released 148 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Model range prices
Norco Revolver 7.3 2015 is the most affordable bike of this model and has a price of 1880$. On the other hand, Norco Revolver 9 SL XX1 2015, is the most expensive and costs 8775$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3400$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revolver 7.1 price is 78.48% more expensive.
Revolver 7.1 components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Revolver 7.1 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolver 7.1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
