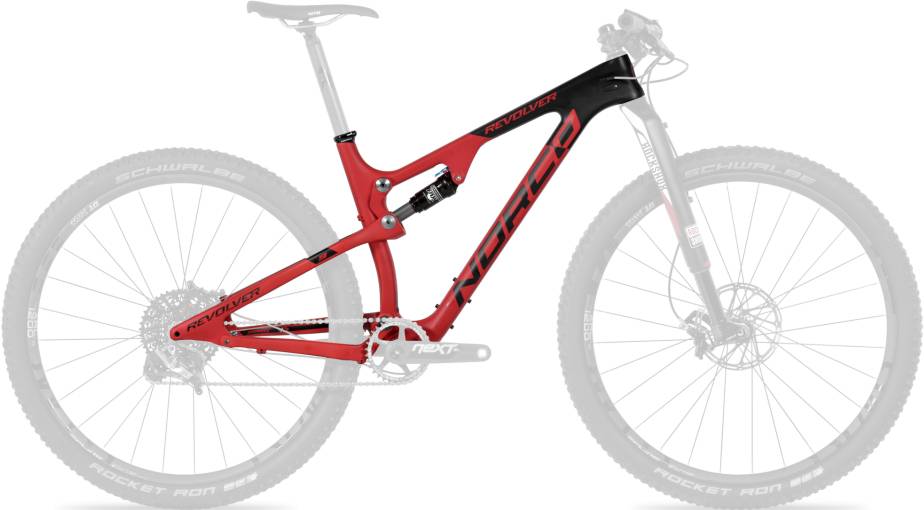

Norco Revolver 9 Framekit 2016
2016 Mountain
Estimate price |
2,125$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver 9 Carbon FS high modulus frame, 100mm travel, frame comes with high direct front derailleur mount
Rear Shock
Fox Float CTD 3 position 165x38
Cockpit
Headset
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 666 mm | 687 mm | 710 mm | 732 mm |
| Rake | 51 mm | 52 mm | 50 mm | 52 mm |
| Trail | 73 mm | 71 mm | 71 mm | 67 mm |
| Stack | 575 mm | 576 mm | 587 mm | 597 mm |
| Reach | 408 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 567 mm | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1167 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 758 mm | 753 mm | 745 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Revolver 9 Framekit is a Norco Revolver model. There are 148 frames that carry this model name. Check out the entire range from 2016 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Revolver SL 9 Framekit 2016 has a starting price of 1400$. Norco Revolver 9 Framekit 2016 on the other hand is the most expensive at 2125$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2016 for 2125$. Doing a quick comparison, we notice that Revolver 9 Framekit price is 25.81% more expensive than the average cost of a Crosscountry frame.
Overview of components
Rear Shock
The Revolver 9 Framekit has a rear shock with a travel of 100mm. The model Fox Float CTD 3 position 165×38 is the one installed in this frame. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Sizes
Norco Revolver 9 Framekit frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
