Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset X01 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC High-Mod Carbon 29
Suspension Fork
RockShox RS1 29 100mm/15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XO1 11spd
Front Derailleur
N/A
Shift Levers
Jagwire
Cassette
SRAM XG 1180 10-42
Crank
SRAM XO1 Carbon 32T
Bottom Bracket
SRAM PF30
Chain
SRAM PG 1170 11spd Hollow Pin
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XR 1501 Spline One W/S
Rear Hub
DT Swiss XR 1501 Spline One W/S
Rims
DT Swiss Spline One Wheelset
Tires
Schwalbe Thunder Burt Evo TL 29 x 2.1
Brakes
Brakes
SRAM Guide RSC w/Connectamajig
Brake Levers
SRAM Guide RSC
Disk Rotors
N/A
Cockpit
Stem
Easton EA70 6 Degree
Handlebar
Easton EC90 720mm Flat Bar
Grips
Norco SL Silicon
Headset
FSA No.42ACB w/8mm Alloy spacer
Seat
Saddle
SDG Circuit MTN RL Ti-alloy
Seatpost
Norco Carbon 30.9/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.47 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 638.1 mm | 659.4 mm | 681.4 mm | 704.1 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 84 mm | 82 mm | 80 mm |
| Stack | 616.1 mm | 617.2 mm | 632.4 mm | 647.7 mm |
| Reach | 394.9 mm | 418.7 mm | 438.2 mm | 458.5 mm |
| Top Tube Length | 573 mm | 600 mm | 627 mm | 655 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 440 mm | 442 mm | 445 mm | 447 mm |
| Wheelbase | 1069 mm | 1093 mm | 1118 mm | 1143 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 750 mm | 790 mm | 817 mm | 846 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

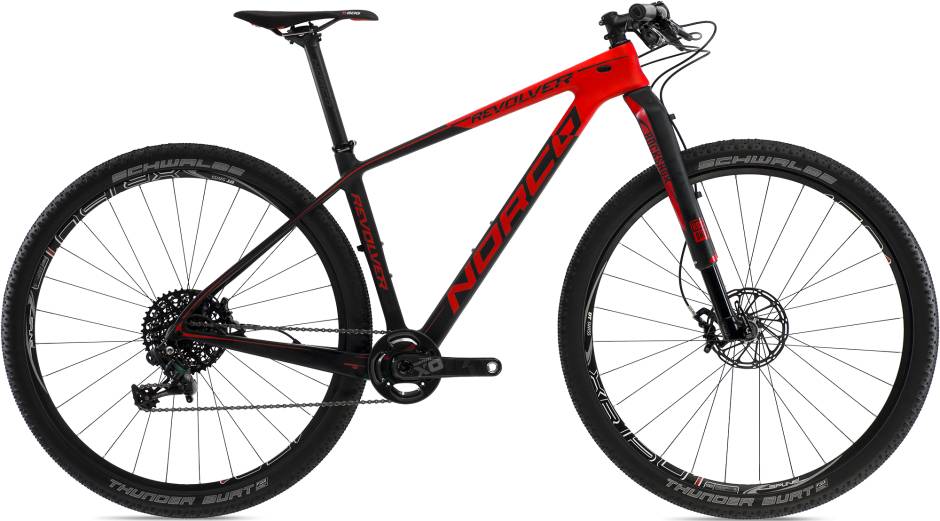

Revolver 9 SL X01 is a Norco Revolver model. 148 bikes variations carry this model name so far. You can easily view all of the Norco Revolver bikes models from 2015, here.
Model range prices
Norco Revolver 7.3 2015 is the most economical model, with a starting price of 1880$. Norco Revolver 9 SL XX1 2015 on the other hand costs 8775$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2015 for 5565$. If we compare this with the average Crosscountry bike cost we notice that the price is 192.13% higher.
Overview of components
Fork
This bike has the RockShox fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Revolver 9 SL X01 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
