Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Suspension Full
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

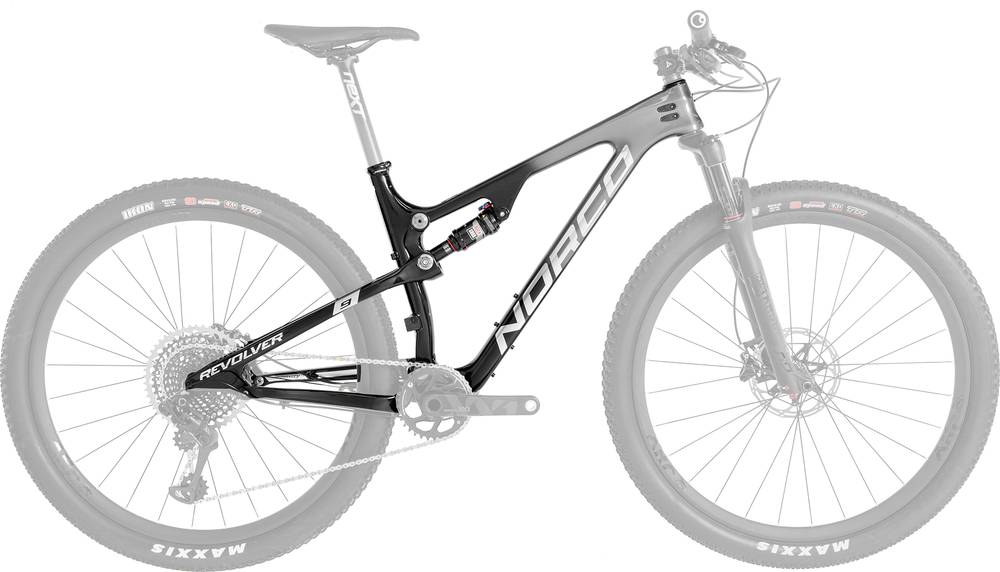

Revolver FS Hi-Mod Carbon 100mm XC Race Frame
Rear Shock
Rockshox Monarch RL
Cockpit
Headset
Angular Sealed Cartridge Bearings - Tapered
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 628 mm | 666 mm | 687 mm | 710 mm | 732 mm |
| Rake | 42 mm | 51 mm | 52 mm | 50 mm | 52 mm |
| Trail | 85 mm | 73 mm | 71 mm | 71 mm | 67 mm |
| Stack | 555 mm | 579 mm | 580 mm | 591 mm | 601 mm |
| Reach | 384 mm | 412 mm | 436 mm | 458 mm | 479 mm |
| Top Tube Length | 534 mm | 571 mm | 598 mm | 625 mm | 652 mm |
| Seat Tube Angle | 75 ° | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° |
| Seat Tube Length | 380 mm | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 70 ° | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 419 mm | 434 mm | 436 mm | 439 mm | 441 mm |
| Wheelbase | 1046 mm | 1097 mm | 1121 mm | 1146 mm | 1171 mm |
| Bottom Bracket Drop | 20 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 736 mm | 772 mm | 762 mm | 757 mm | 749 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Revolver FS Frame is a Norco Revolver model. Norco released 148 frames variations of this model so far. You can easily view all of the Norco Revolver frames models from 2018, here.
Model range prices
The most economical model, the Norco Revolver HT Frame 2018 has a starting price of 1499$. Norco Revolver FS Frame 2018 on the other hand is the most expensive at 2399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry frames average price
According to our math, the average price for a trustworthy Crosscountry frame is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. Doing a quick comparison, we notice that Revolver FS Frame price is 42.04% more expensive than the average cost of a Crosscountry frame.
Overview of components
Rear Shock
The shock that’s installed on this frame is Rockshox Monarch RL, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
Norco Revolver FS Frame frame has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
