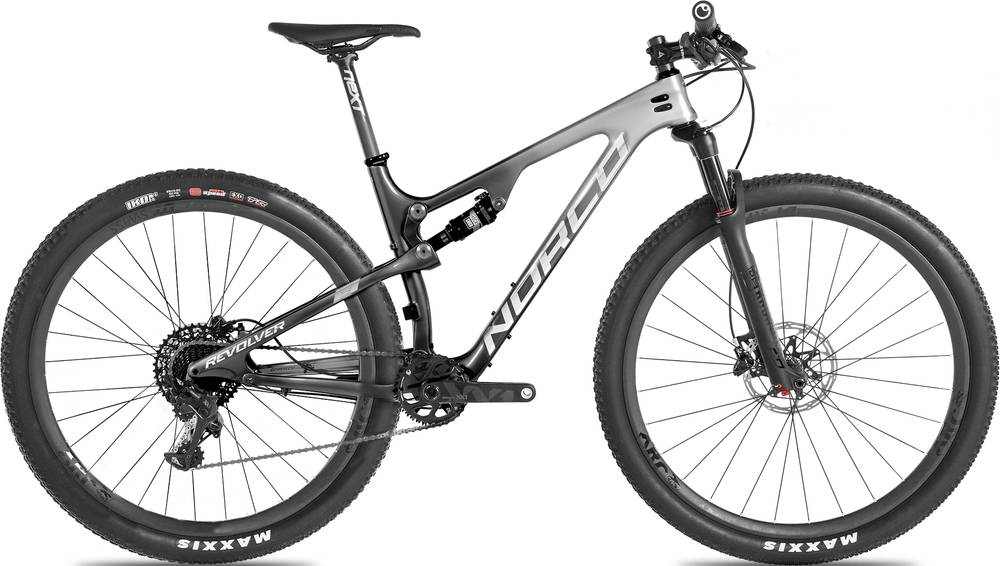

Norco Revolver FS XX1 29 2018
2018 Mountain
Estimate price |
7,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver FS Hi-Mod Carbon 100mm XC Race Frame
Suspension Fork
RockShox Sid World Cup R 100mm - 110mm/15mm
Rear Shock
Rockshox Monarch RL
Drivetrain
Rear Derailleur
SRAM XX1 Eagle 12spd
Shift Levers
SRAM XX1 Eagle 12spd
Cassette
SRAM XG1295 Eagle 10/50 12spd
Crank
SRAM XX1 Eagle 34T 12spd
Bottom Bracket
SRAM PF MTB
Chain
SRAM X01 Eagle 12spd Black
Wheels
Front Hub
DT Swiss XRC 1200 Spline Wheelset 25mm
Rear Hub
DT Swiss XRC 1200 Spline Wheelset 25mm
Rims
DT Swiss XRC 1200 Carbon
Tires
Maxxis Ikon 29"x 2.2"/27.5" x 2.2" 3C/TR/EXO
Brakes
Brakes
SRAM Level Ultimate 180mm
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
Race Face Turbine 35mm
Handlebar
Race Face Next SL Carbon 760mm/10mm
Grips
Ergon GA30 Lock On Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
SDG Duster RL
Seatpost
Race Face Next 31.6/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 666 mm | 687 mm | 710 mm | 732 mm |
| Rake | 51 mm | 52 mm | 50 mm | 52 mm |
| Trail | 80 mm | 77 mm | 78 mm | 74 mm |
| Stack | 575 mm | 576 mm | 587 mm | 597 mm |
| Reach | 408 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 567 mm | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1167 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 758 mm | 753 mm | 745 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Revolver FS XX1 29 belongs to the Norco Revolver model. Norco launched 148 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Revolver HT 3 2018 is the most affordable bike of this model and has a price of 2199$. On the other hand, Norco Revolver FS XX1 2018, is the most expensive and costs 7699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 7699$. Doing a quick comparison, we notice that Revolver FS XX1 29 price is 304.15% higher than the average cost of a Crosscountry bike.
Revolver FS XX1 29 components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Rockshox Monarch RL model, with a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Norco Revolver FS XX1 29 2018, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Revolver FS XX1 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Norco Revolver FS XX1 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
