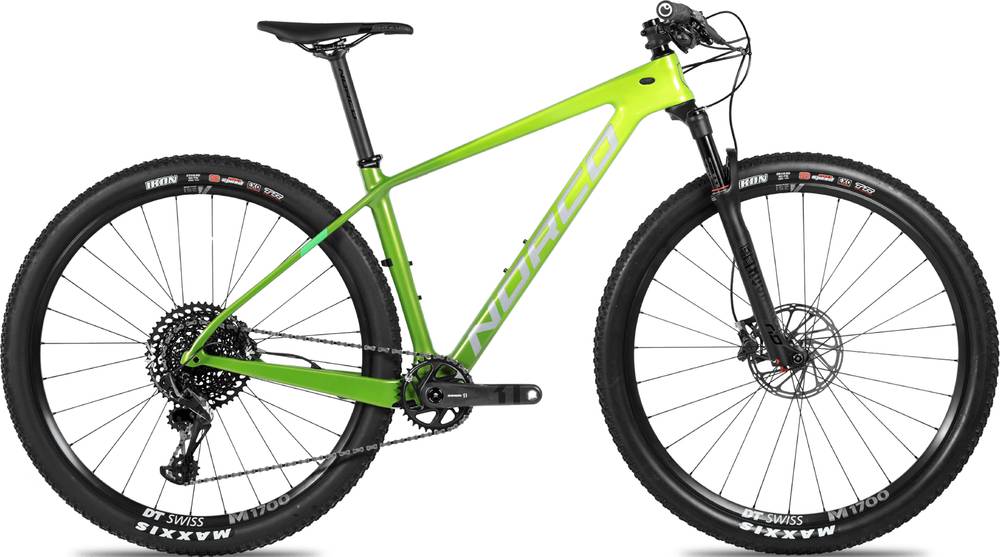

Norco Revolver HT 1 27.5 2019
2019 Mountain
Estimate price |
4,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X01 Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver HT Carbon XC Race Frame
Suspension Fork
RockShox Sid RLC 100mm - 110mm/15mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12spd
Shift Levers
SRAM X01 Eagle 12spd
Cassette
SRAM XG1275 Eagle 10/50 12spd
Crank
SRAM X1 Carbon 12spd 34T
Bottom Bracket
SRAM PF MTB
Chain
SRAM GX Eagle 12spd
Wheels
Front Hub
DT Swiss M1700 Spline Two Wheelset 25mm
Rear Hub
DT Swiss M1700 Spline Two Wheelset 25mm
Rims
DT Swiss M1700 Spline Two Wheelset 25mm
Tires
Maxxis Ikon 29"x 2.2"/27.5" x 2.2" 3C/TR/EXO
Brakes
Brakes
SRAM Level TLM 180mm
Brake Levers
SRAM Level TLM
Cockpit
Stem
Norco SL Alloy Stem
Handlebar
Norco DB Lite 760mm 15mm Riser
Grips
Ergon GA30 Lock On Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
SDG Duster RL
Seatpost
Norco SL Alloy Post 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Bottom Bracket Height | 305 mm |
| Front Center | 621 mm |
| Rake | 41 mm |
| Trail | 89 mm |
| Stack | 585 mm |
| Reach | 376 mm |
| Top Tube Length | 543 mm |
| Seat Tube Angle | 74 ° |
| Seat Tube Length | 368 mm |
| Head Tube Angle | 69.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 424 mm |
| Wheelbase | 1040 mm |
| Bottom Bracket Drop | 47 mm |
| Standover Height | 727 mm |
| Wheels | 27" |
About this model
Revolver HT 1 27.5 is a Norco Revolver model. Norco launched 148 bikes of this model so far. You can easily view all of the Norco Revolver bikes models from 2019, here.
Model range prices
Norco Revolver HT 3 2019 is the most affordable bike of this model and has a price of 2199$. On the other hand, Norco Revolver HT XX1 29 2019, is the most expensive and costs 6899$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Norco Revolver HT 1 27.5 price was 4199$. Comparing this to the average Crosscountry bike price, we see that the price is 120.42% higher.
Revolver HT 1 27.5 components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Revolver HT 1 27.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolver HT 1 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
