Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset NX Eagle, Truvativ Stylo -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Sasquatch, Aluminum, 12x197mm TA Dropouts
Suspension Fork
Norco Carbon Fat Fork, 15x150mm TA, 51mm Offset
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Front Derailleur
-
Shift Levers
Rear: SRAM NX Eagle, 12 Speed, Front: -
Cassette
SRAM NX Eagle PG-1230, 11-50T, 12 Speed
Crank
Truvativ Stylo 6K FAT5, 170mm (S) | 175mm (M/L/XL), 30T
Bottom Bracket
SRAM DUB BB, Threaded BSA 100mm
Chain
SRAM NX Eagle, 12 Speed
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
KT M9CF 150x15 Sealed Hub
Rear Hub
KT-M9CR, 12x197mm
Rims
Sun Mulefüt 80SL, 32 Hole, 80mm Internal Width
Tires
Maxxis Minion FBF, 26x4.8", EXO/TR, Folding
Brakes
Brakes
SRAM Level, 2 Piston Hydraulic Disc, Avid G2 180mm Rotor
Brake Levers
SRAM Level
Cockpit
Stem
Norco 6061 Alloy 60mm/35mm
Handlebar
Norco 6061 DB Alloy 780mm
Grips
VP, Lock-On
Headset
FSA Internal Headset
Seat
Saddle
Norco XC Saddle
Seatpost
TranzX YSP18JL Stealth Dropper, 130mm Travel, 31.6mm, 1x Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 328.5 mm | 328.5 mm | 328.5 mm | 328.5 mm |
| Front Center | 685 mm | 710 mm | 736 mm | 762 mm |
| Rake | 52 mm | 51 mm | 50 mm | 52 mm |
| Trail | 82 mm | 84 mm | 85 mm | 82 mm |
| Stack | 599 mm | 608 mm | 618 mm | 627 mm |
| Reach | 402 mm | 425 mm | 447 mm | 469 mm |
| Top Tube Length | 587 mm | 612 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1116 mm | 1142 mm | 1167 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 735 mm | 735 mm | 739 mm | 756 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

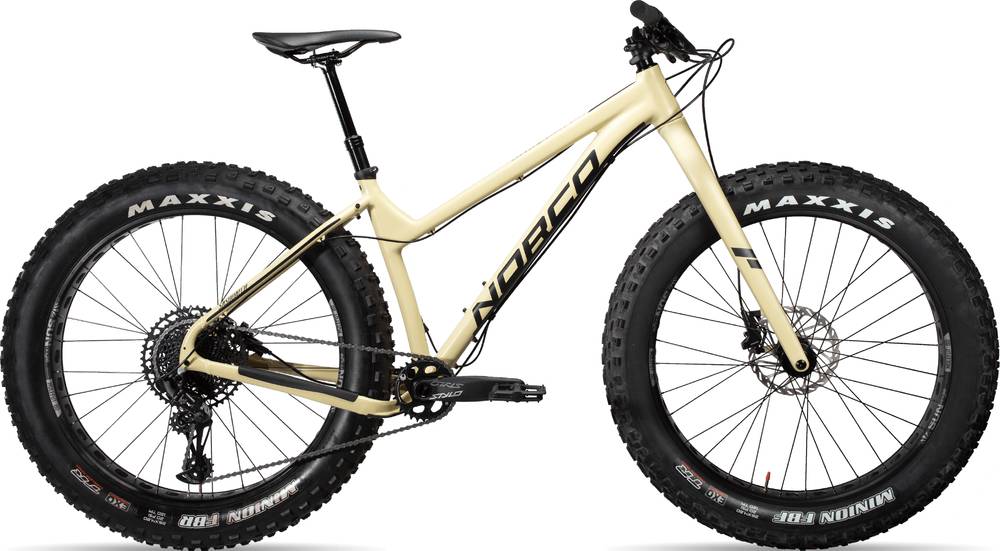

Sasquatch 1 Rigid belongs to the Norco Sasquatch model. There are 16 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Norco Sasquatch 1 Rigid 2019 is the most economical model, with a starting price of 2099$. Norco Sasquatch 1 Suspension 2019 on the other hand costs 2599$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike bikes
According to our math, the average price for a trustworthy Fatbike bike is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 2099$. Comparing this to the average Fatbike bike price, we see that the price is 20.42% higher.
Sasquatch 1 Rigid components
Fork material
Sasquatch 1 Rigid has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Sasquatch 1 Rigid 2019 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Norco model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
