Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 100mm -
Fork RST
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW FRAME197x12 thru axle
Suspension Fork
RST Renegade 100mmx15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX Shadow Plus 10spd
Front Derailleur
N/A
Shift Levers
Jagwire LEX housing
Cassette
Shimano Deore HG50 11-36T 10spd
Crank
Race Face Aeffect 26T
Bottom Bracket
Race Face External
Chain
KMC X10 10spd
Chain Tensioner
N/A
Pedals
Wellgo alloy body / alloy cage MTB pedal
Wheels
Front Hub
KT 150mm x 15mm Sealed Hub
Rear Hub
Novatec 197x12
Rims
Alloy 80mm SW 26 inch
Tires
N/A
Brakes
Brakes
Avid DB5 160mm
Brake Levers
Avid DB5
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy 70mm
Handlebar
Norco Lite DB 15mm 740mm
Grips
Norco SL Silicon
Headset
Feimin Sealed Internal H/S
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 328.5 mm | 328.5 mm | 328.5 mm | 328.5 mm |
| Front Center | 685 mm | 710 mm | 736 mm | 762 mm |
| Rake | 52 mm | 51 mm | 50 mm | 52 mm |
| Trail | 82 mm | 84 mm | 85 mm | 82 mm |
| Stack | 599 mm | 608 mm | 618 mm | 627 mm |
| Reach | 402 mm | 425 mm | 447 mm | 469 mm |
| Top Tube Length | 587 mm | 612 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1116 mm | 1142 mm | 1167 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 735 mm | 735 mm | 739 mm | 756 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

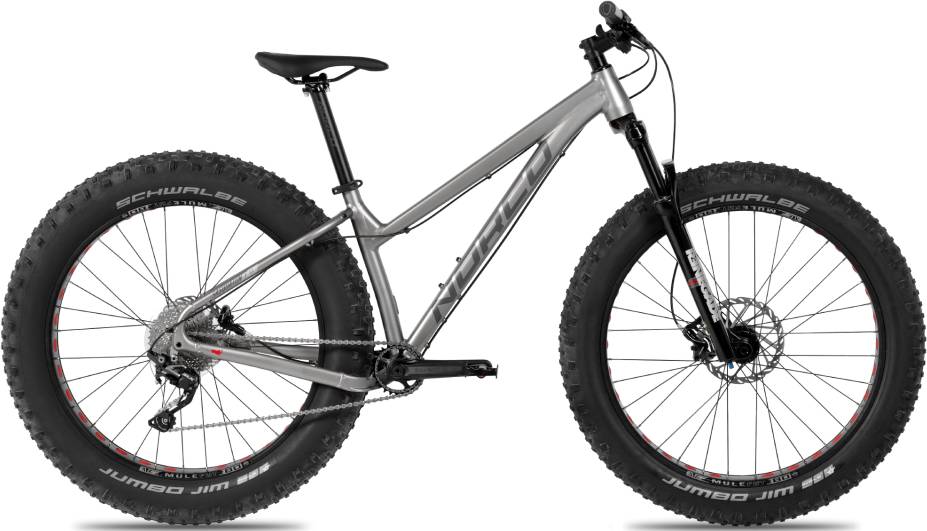

Sasquatch 6.2 is part of the Norco Sasquatch model. 16 bikes variations carry this model name so far. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Norco Sasquatch 6.2 Rigid 2016 is the most economical model, with a starting price of 1875$. Norco Sasquatch 6.1 2016 on the other hand costs 2575$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2016 and its price was 1915$. Comparing this to the average Fatbike bike price, we see that the price is 9.87% higher.
Overview of components
Fork
Norco Sasquatch 6.2 2016 bike is equipped with the RST fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Sasquatch 6.2 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
