Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Suspension Hardtail
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sasquatch Fat Frame DB X6 Alloy - 197x12
Suspension Fork
N/A
Rear Shock
N/A
Cockpit
Headset
Angular Sealed Cartridge Bearings - Tapered
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.38 mm | 1.34 mm |
| Bottom Bracket Height | 328.5 mm | 328.5 mm | 328.5 mm | 328.5 mm |
| Front Center | 685 mm | 710 mm | 736 mm | 762 mm |
| Rake | 52 mm | 51 mm | 50 mm | 52 mm |
| Trail | 82 mm | 84 mm | 85 mm | 82 mm |
| Stack | 599 mm | 608 mm | 618 mm | 627 mm |
| Reach | 402 mm | 425 mm | 447 mm | 469 mm |
| Top Tube Length | 587 mm | 612 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1116 mm | 1142 mm | 1167 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 735 mm | 735 mm | 739 mm | 756 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

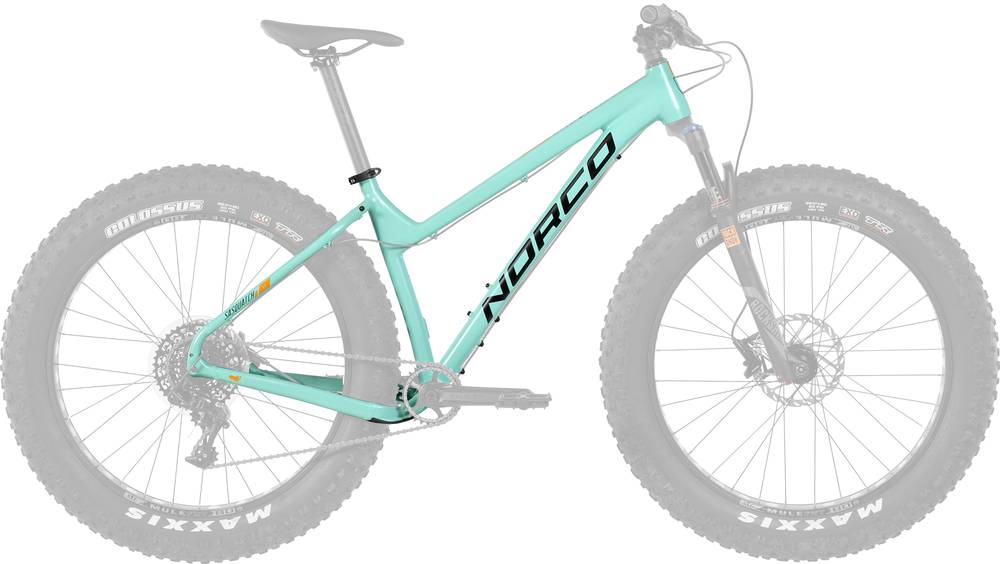

Sasquatch 6 Frame belongs to the Norco Sasquatch model. 16 frames variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike frames average price
According to our math, the average price for a trustworthy Fatbike frame is 1277$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2017, its price was 549$. Comparing the average cost of a Fatbike frame to this one, you will see that Sasquatch 6 Frame price is 132.6% lower.
Sasquatch 6 Frame components
Sizes
Sasquatch 6 Frame comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
