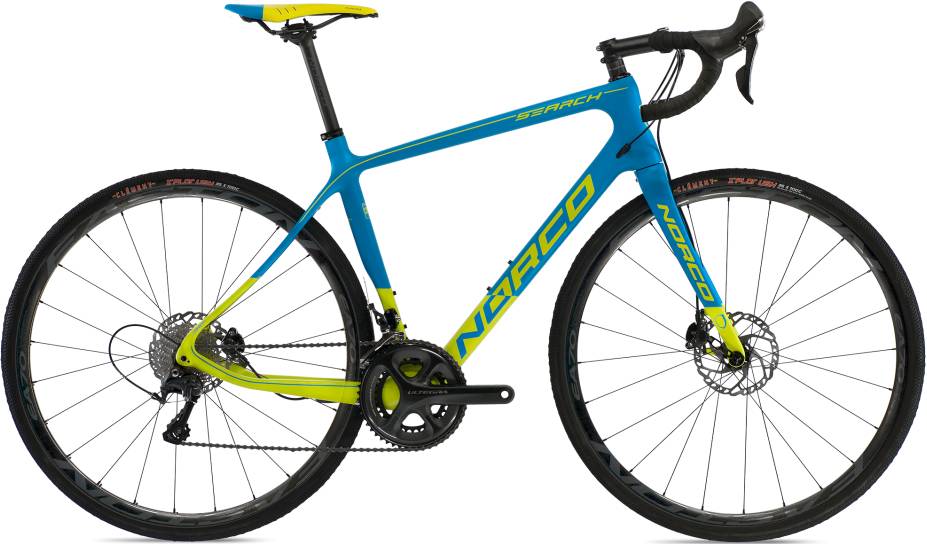

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Mid-Mod Carbon - TA Disc
Suspension Fork
Search Mid-Mod Full Carbon - TA Disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra RD-6800-GS 11spd
Front Derailleur
Shimano Ultegra FD-6800 11spd
Shift Levers
Shift Housing w/Sealed End Caps - Black
Cassette
Shimano Ultegra CS-6800 11spd 11-32T
Crank
Shimano Ultegra FC-6800 11spd 50/34T
Bottom Bracket
Shimano SM-BB71 Pressfit BB86
Chain
Shimano CN-HG700 11spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Easton EA70 XCT - 15x100mm
Rear Hub
Easton EA70 XCT - 12x142mm
Rims
Easton EA70 XCT - Tubeless
Tires
Clement X'Plor USH 120tpi 35c Folding
Brakes
Brakes
Shimano BR-RS785 Hydraulic Disc w/160mm
Brake Levers
Shimano BR-RS685 Hydraulic Disc
Disk Rotors
N/A
Cockpit
Stem
Norco Lite - Black Stealth
Handlebar
Ritchey WCS Evo Curve - Black
Grips
Norco UltraComfort w/Vex Gel - Black
Headset
Cane Creek 10-Series w/9mm Top Cover
Seat
Saddle
Fizik Tundra M5
Seatpost
Norco Lite Composite 27.2 - UD Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.51 mm | 1.54 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 279.5 mm | 279.5 mm | 282 mm | 282 mm | 284.5 mm | 284.5 mm |
| Front Center | 577 mm | 583 mm | 592 mm | 604 mm | 617 mm | 629 mm |
| Rake | 47 mm | 47 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 72 mm | 69 mm | 62 mm | 60 mm | 59 mm | 57 mm |
| Stack | 521 mm | 537 mm | 553 mm | 576 mm | 595 mm | 618 mm |
| Reach | 354 mm | 359 mm | 367 mm | 375 mm | 384 mm | 391 mm |
| Top Tube Length | 503.5 mm | 516 mm | 533.5 mm | 551 mm | 568.5 mm | 586 mm |
| Seat Tube Angle | 74.75 ° | 74.25 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 425 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71.25 ° | 72 ° | 72.25 ° | 72.5 ° | 72.75 ° |
| Head Tube Length | 115 mm | 130 mm | 147.5 mm | 170 mm | 192.5 mm | 215 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 982 mm | 988 mm | 998 mm | 1010 mm | 1024 mm | 1036 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 704 mm | 721 mm | 747 mm | 769 mm | 792 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Search XR is part of the Norco Search model. Norco launched 121 bikes of this model so far. You can easily view all of the Norco Search bikes models from 2015, here.
Model range prices
Norco Search S3 2015 is the cheapest bike model and costs 885$. Norco Search XR 2015 is the most expensive one and costs 3700$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3700$. If we compare this with the average Gravel bike cost we notice that the price is 50.28% more expensive.
Search XR components
Fork material
Search XR has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Search XR bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search XR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
