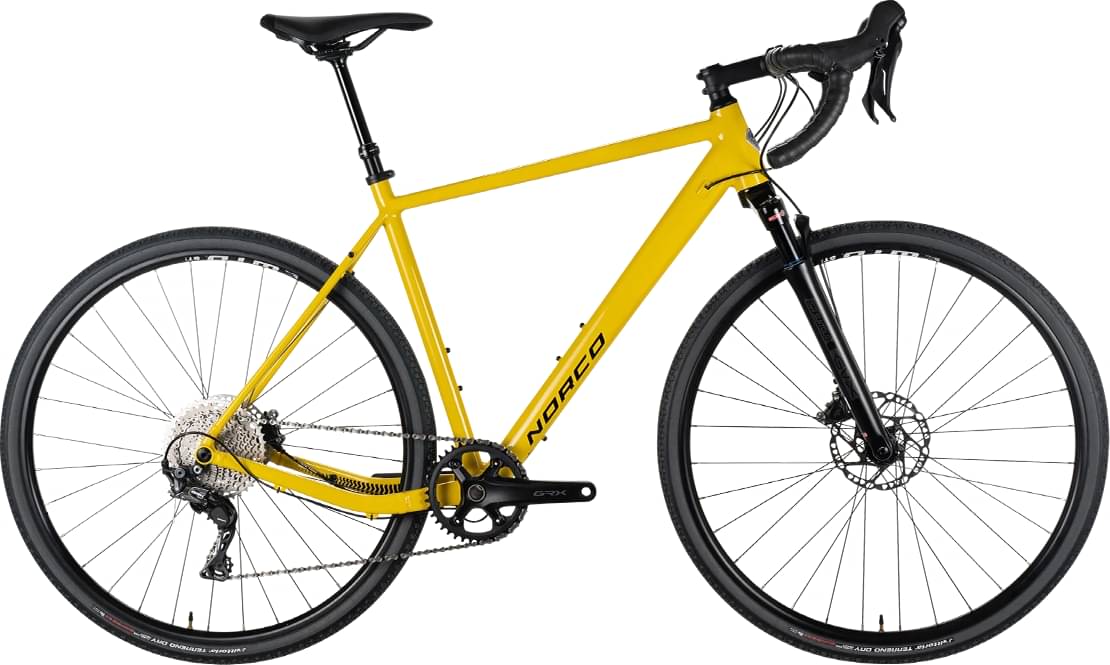

Norco Search XR A Suspension 2022
2022 Road
Estimate price |
2,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour GVX
-
Groupset GRX 800, GRX 600 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50.5cm
158cm - 167cm
53cm
165cm - 174cm
55.5cm
171cm - 180cm
58cm
177cm - 186cm
60.5cm
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted X6 Aluminum
Suspension Fork
SR Suntour GVX Gravel, 50mm, Lockout
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812 Shadow RD+
Shift Levers
Shimano GRX ST-RX600
Cassette
Shimano Deore CS-M5100, 11-42T, 11 Speed
Crank
Shimano GRX FC-RX600, 40T, 170mm (50.5), 172.5mm (53, 55.5), 175mm (58, 60.5)
Bottom Bracket
Shimano BB-RS500 PF86
Chain
KMC X11
Wheels
Front Hub
Shimano HB-MT410, 15x100mm, Center Lock
Rear Hub
Shimano FH-RS470, 12x142mm, HG, Center Lock
Rims
WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)
Tires
Front: Vittoria Terreno Dry, 40mm, Graphene 2.0, Rear: Vittoria Terreno Dry, 40mm, Graphene 2.0
Brakes
Brakes
Front: Shimano GRX BR-RX400 Hydraulic Disc, Resin Pads, Rear: Shimano GRX BR-RX400 Hydraulic Disc, Resin Pads
Brake Levers
Shimano GRX RX600 Hydraulic
Cockpit
Stem
Norco SL Aluminum
Handlebar
Norco Super Flare Aluminum, 16deg Flare, 42cm (45.5, 48, 50.5), 44cm (53, 55.5), 46cm (58, 60.5)
Grips
Norco Griptacular Shockproof Tape
Headset
Integrated Sealed Bearing
Seat
Saddle
Selle Royal Vivo, Mag Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, 27.2mm, Drop-Bar Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.51 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 285 mm | 288 mm | 288 mm | 290 mm | 290 mm |
| Front Center | 627 mm | 634 mm | 640 mm | 655 mm | 670 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 83 mm | 83 mm | 80 mm | 80 mm | 80 mm |
| Stack | 553 mm | 565 mm | 586 mm | 607 mm | 626 mm |
| Reach | 382 mm | 384 mm | 387 mm | 394 mm | 403 mm |
| Top Tube Length | 545 mm | 557 mm | 572 mm | 588 mm | 606 mm |
| Seat Tube Angle | 73.7 ° | 73.2 ° | 72.7 ° | 72.5 ° | 72.3 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 155 mm | 175 mm |
| Chainstay Length | 414 mm | 414 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1032 mm | 1040 mm | 1048 mm | 1064 mm | 1079 mm |
| Bottom Bracket Drop | 69 mm | 66 mm | 66 mm | 64 mm | 64 mm |
| Standover Height | 685 mm | 714 mm | 741 mm | 771 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 171 cm | 177 cm | 184 cm |
| Rider Max Height | 167 cm | 174 cm | 180 cm | 186 cm | 194 cm |
Model Overview
Search XR A Suspension is part of the Norco Search model. Norco released 121 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Norco Search XR Flat Bar 2022 is the most economical model, with a starting price of 1299$. Norco Search XR C 700c 2022 on the other hand costs 3999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 2399$. Doing a quick comparison, we notice that Search XR A Suspension price is 2.63% lower than the average cost of a Gravel bike.
Search XR A Suspension components
Fork
This bike has the Suntour GVX fork installed. The fork’s travel is 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Search XR A Suspension 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Search XR A Suspension comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Search XR A Suspension comes in 5 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Search XR A Suspension. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
