Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45.5cm
147cm - 154cm
48cm
152cm - 161cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-Modulus Carbon
Suspension Fork
Mid-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810 Shadow RD+
Front Derailleur
Shimano GRX FD-RX810
Shift Levers
Shimano GRX ST-RX600
Cassette
Shimano 105 CS-R7000, 11-34T, 11 Speed
Crank
Shimano GRX FC-RX600, 46/30T, 170mm (50.5), 172.5mm (53, 55.5) 175mm (58, 60.5)
Bottom Bracket
Shimano BB-RS500 PF86
Chain
KMC X11
Wheels
Front Hub
Shimano HB-RS470, 12x100mm, Center Lock
Rear Hub
Shimano FH-RS470, 12x142mm, HG, Center Lock
Rims
WTB ST Light i23 TCS 2.0, 32H, Tubeless Ready, 650b (45.5, 48), 700c (50.5-60.5)
Tires
Front: Maxxis Rambler 40c Exo, Tubeless Ready, 120TPI, Rear: Maxxis Rambler 40c Exo, Tubeless Ready, 120TPI
Brakes
Brakes
Front: Shimano GRX BR-RX400 Hydraulic Disc, Resin Pads, Rear: Shimano GRX BR-RX400 Hydraulic Disc, Resin Pads
Brake Levers
Shimano GRX RX600 Hydraulic
Cockpit
Stem
Norco SL Aluminum
Handlebar
Easton EA50 AX Aluminum, 16deg Flare, 42cm (50.5), 44cm (53, 55.5), 46cm (58, 60.5)
Headset
FSA Orbit No. 42
Seat
Saddle
Selle Royal Vivo, Mag rails
Seatpost
Norco SL Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 567 mm | 578 mm |
| Rake | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 627 mm | 651 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 147 cm | 152 cm |
| Rider Max Height | 154 cm | 161 cm |
Model Overview

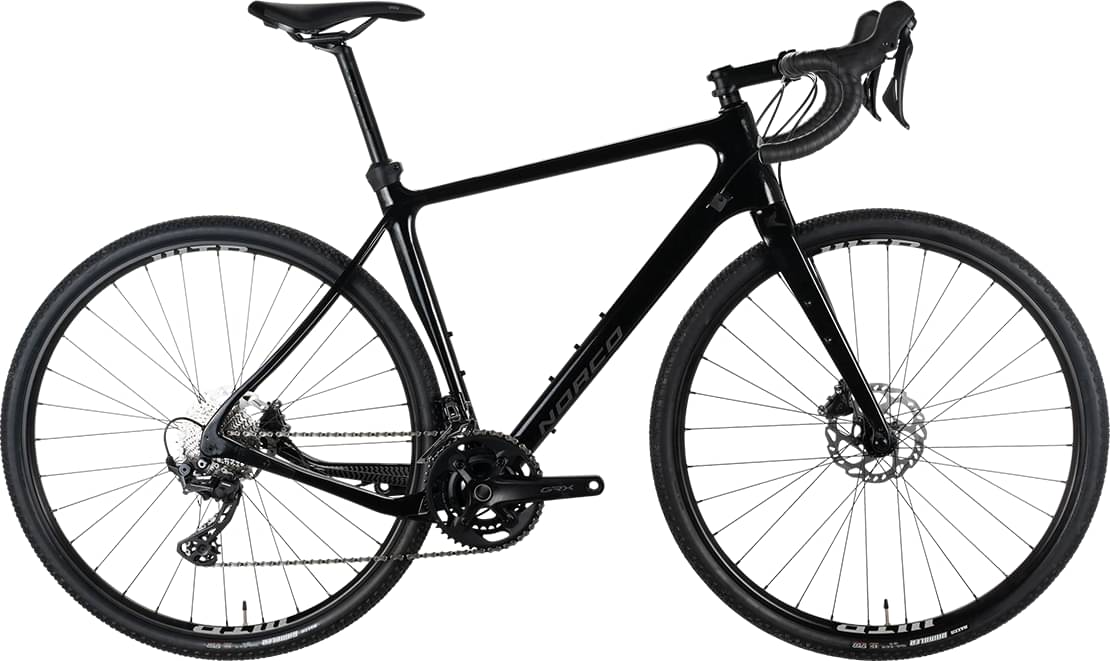

Search XR C 650b is a Norco Search model. Norco launched 121 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Norco Search XR Flat Bar 2022 is the cheapest bike model and costs 1299$. Norco Search XR C 700c 2022 is the most expensive one and costs 3999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2022, its price was 3999$. In conclusion, this bike price is 62.43% higher than the price of the average Gravel bike.
Search XR C 650b components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Search XR C 650b 2022 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Search XR C 650b has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Search XR C 650b comes in 2 sizes, that range from 147 cm – 161 cm (4.82 ft – 5.28 ft). In short, it won’t be difficult to find the right one for you.
